      ANG Dockside Connections

      ANG Smart-Y, Splitter, Pigtail Adapters, Marine Shore Cord, Connectors & Plugs

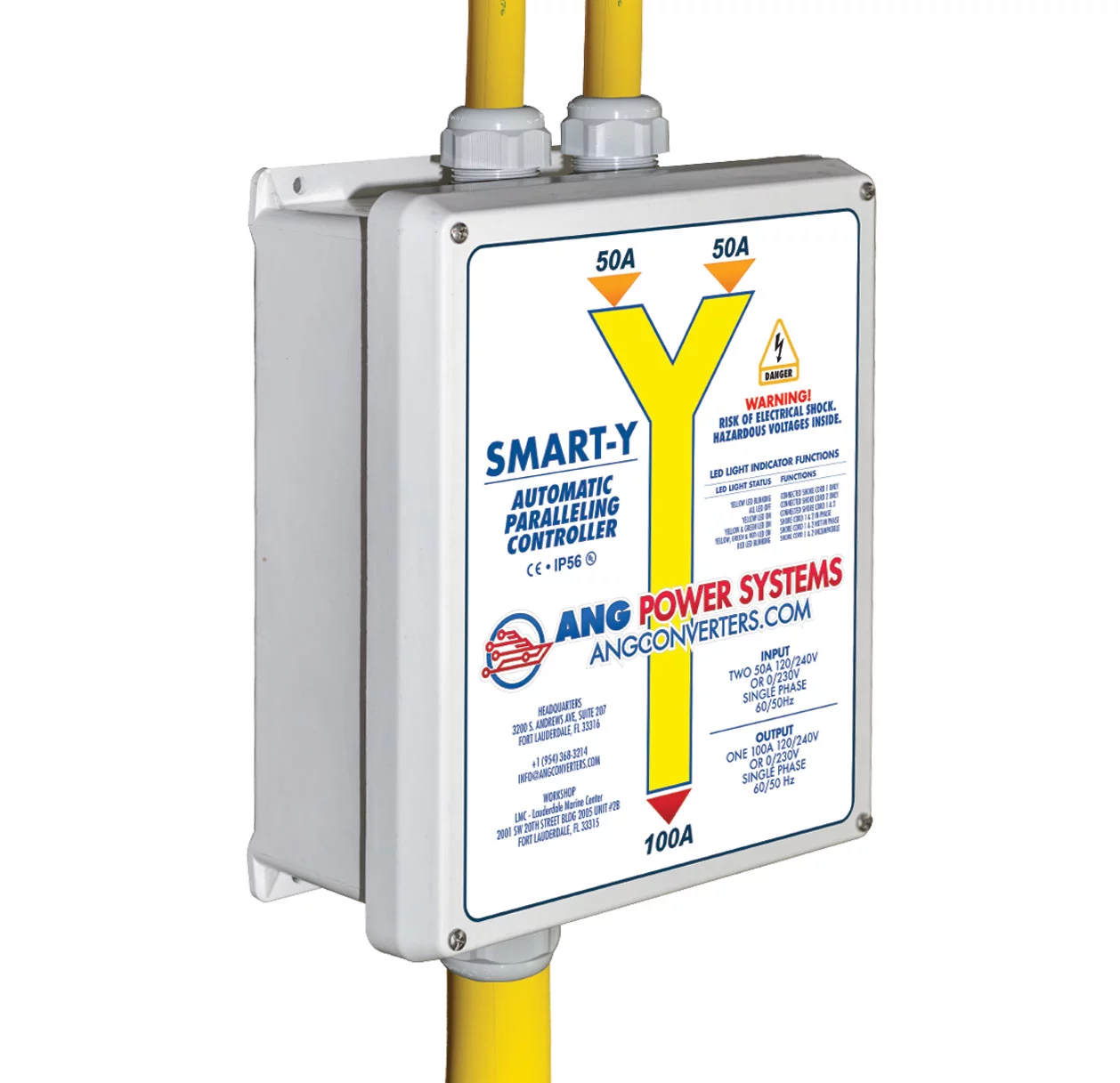

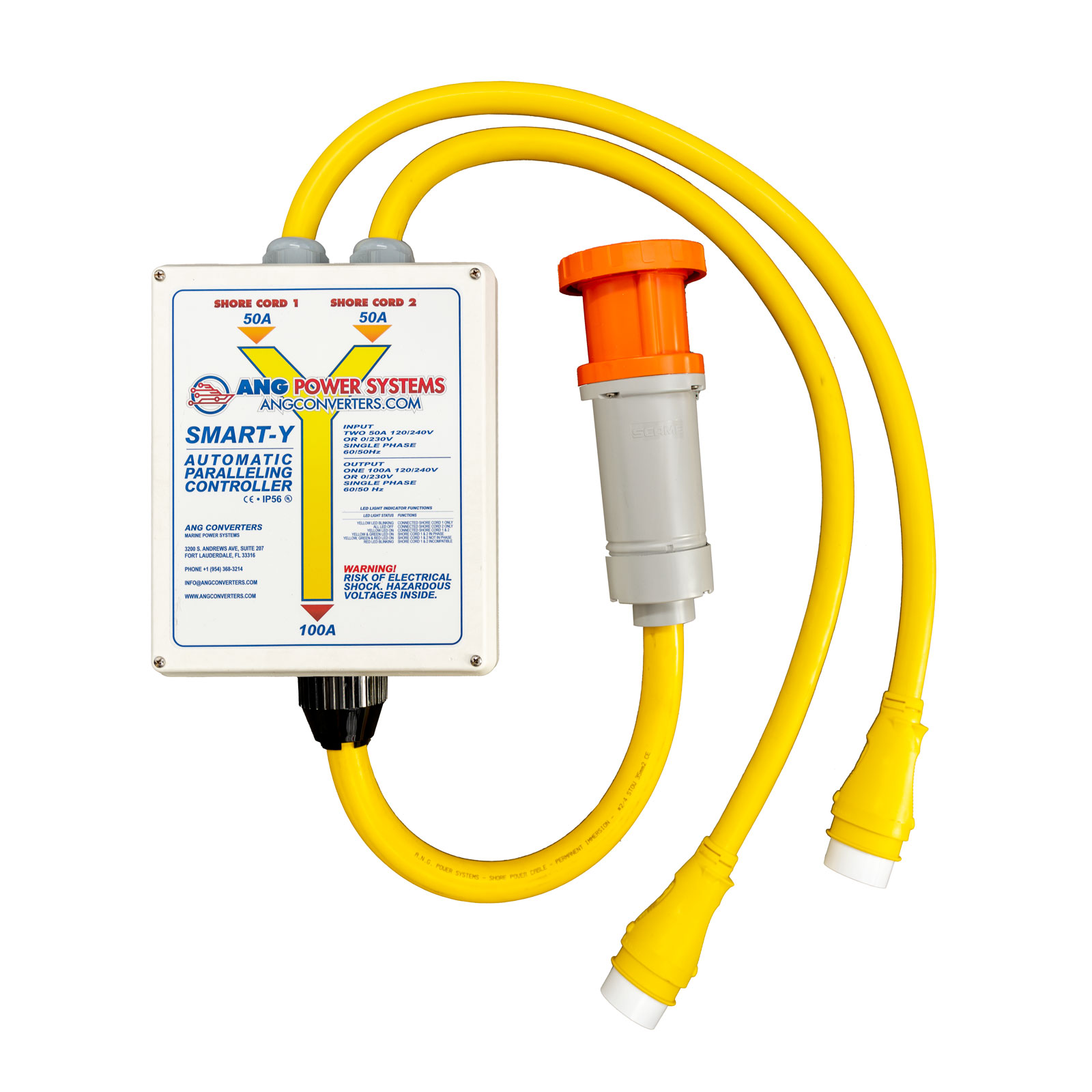

      ANG Smart-Y™

      ANG Smart-Y comes complete with all necessary cables, connectors, and plugs.

      AUTOMATIC PARALLELING CONTROLLER IP56

      Sometimes, a marina or dock does not provide a single 100-amp outlet but instead offers multiple 50-amp receptacles. This is common in older or less-equipped marinas where the infrastructure was designed for smaller vessels.

      If your boat uses a 100-amp 120/240V single-phase system, you need a SMART Y ADAPTER with an automatic paralleling controller. This device safely combines two 50-amp receptacles to supply power to your 100-amp system.

      The ANG Smart-Y Controller allows you to safely connect your boat’s 100-amp 120/240V single-phase shore power cord to two 50-amp 120/240V dock pedestal receptacles. Housed in an IP56-rated fiberglass enclosure, the Smart-Y is built to withstand harsh marine environments and ensure worry-free operation.

      The unit automatically verifies the phase of both 50A connections and corrects them when necessary to create a safe, parallel connection.

      Housed in an IP56-rated fiberglass enclosure, it enables you to connect your 100A, 120/240V single-phase system safely to two 50A, 120/240V receptacles.
      It automatically checks the phase of both 50A connections and corrects them when necessary to create a safe parallel connection.

      INPUT: Two 50A 120/240V 60Hz or Two 50A 0/230V 50Hz
      OUTPUT: One 100A 120/240V 60Hz or One 100A 0/230V 50Hz

      ANG Smart-Y comes complete with all necessary cables, connectors, and plugs.

      Read on to explore the specifications of our 100-amp marine shore power cord and dockside solutions, and get in touch with us if you have any questions. We offer reliable systems, short lead times, and competitive pricing to upgrade your vessel and keep it safely powered wherever you go.

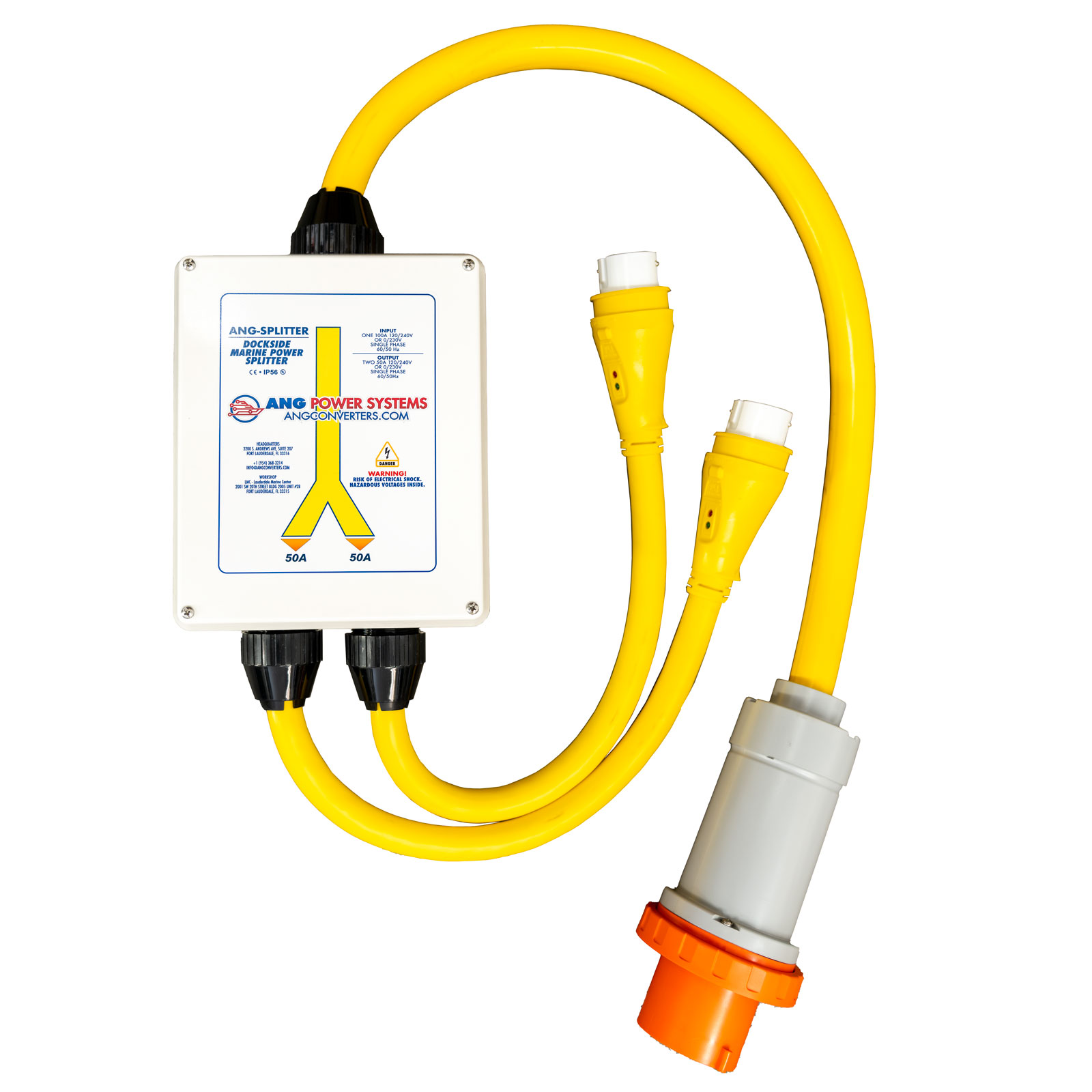

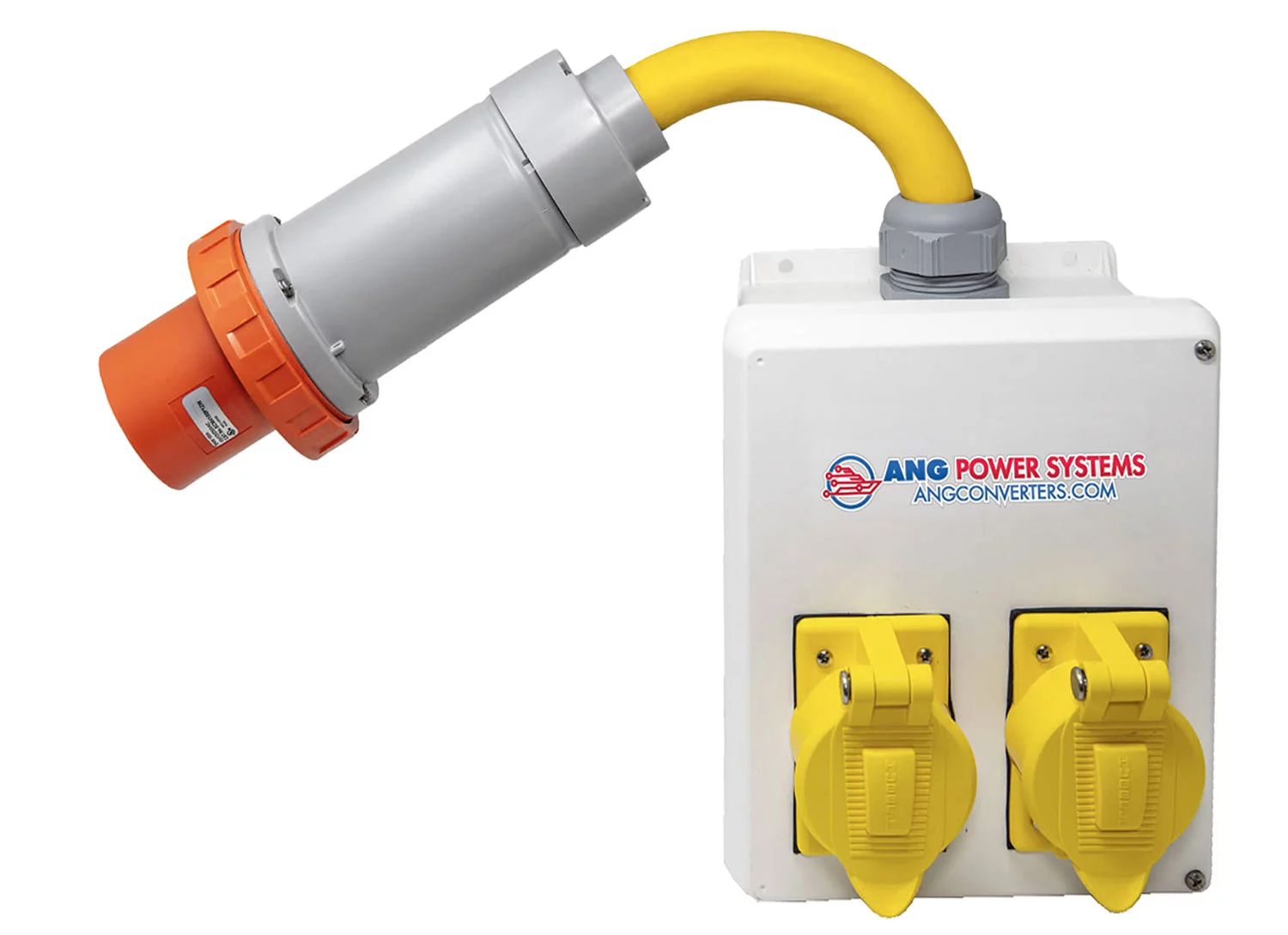

      ANG Splitter™

      ANG Splitter comes complete with all necessary cables, connectors, and plugs.

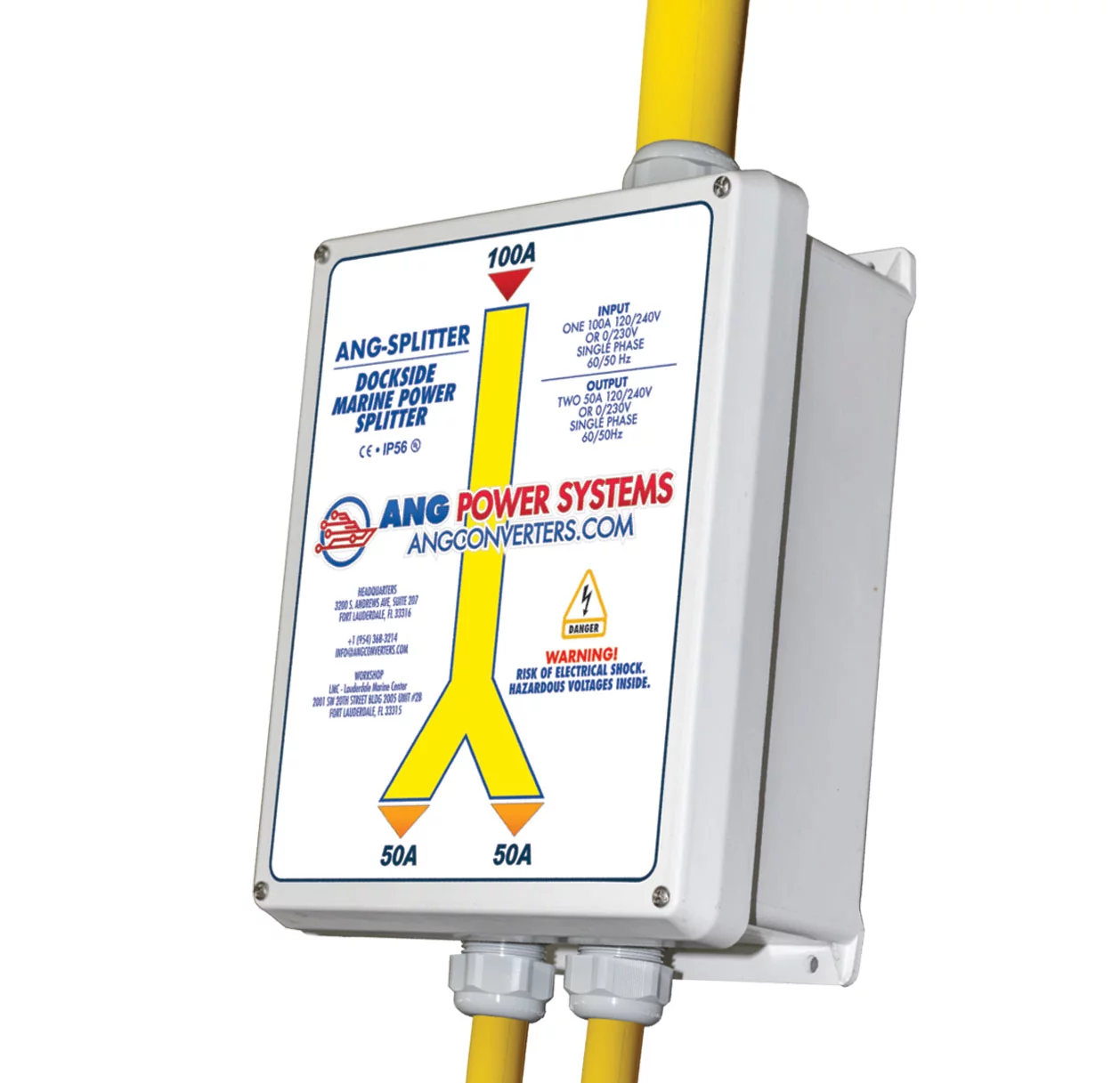

      Dockside marine Power Splitter

      Some boats are equipped with dual 50-amp inlets to accommodate systems that draw significant power across multiple circuits, such as air conditioning, refrigeration, and other essential onboard equipment. A dockside marine power splitter allows the vessel to utilize a single 100-amp power source efficiently by dividing it into two 50-amp connections. This ensures proper distribution of power to the boat’s systems and complies with marina power configurations.

      If your boat has twin 50A shore power connections, our ANG Splitter enables you to safely connect the boat’s two 50-amp 120/240V shore power cords to a single 100-amp 120/240V dock pedestal receptacle.

      Our dockside Y-splitter is housed in an IP56-rated fiberglass enclosure, engineered to withstand harsh marine environments.

      Housed in an IP56 fiberglass enclosure, it safely splits a 100A input cable into two 50A output cables.

      INPUT ONE 100A 120/240V or 0/230V Single Phase 60/50 Hz
      OUTPUT TWO 50A 120/240V or 0/230V Single Phase 60/50Hz

      For more information about our twin 50-amp or 100-amp shore power connection equipment, please contact us today.
      We guarantee outstanding service, fast lead times, competitive pricing, and—most importantly—high-quality, dependable products.

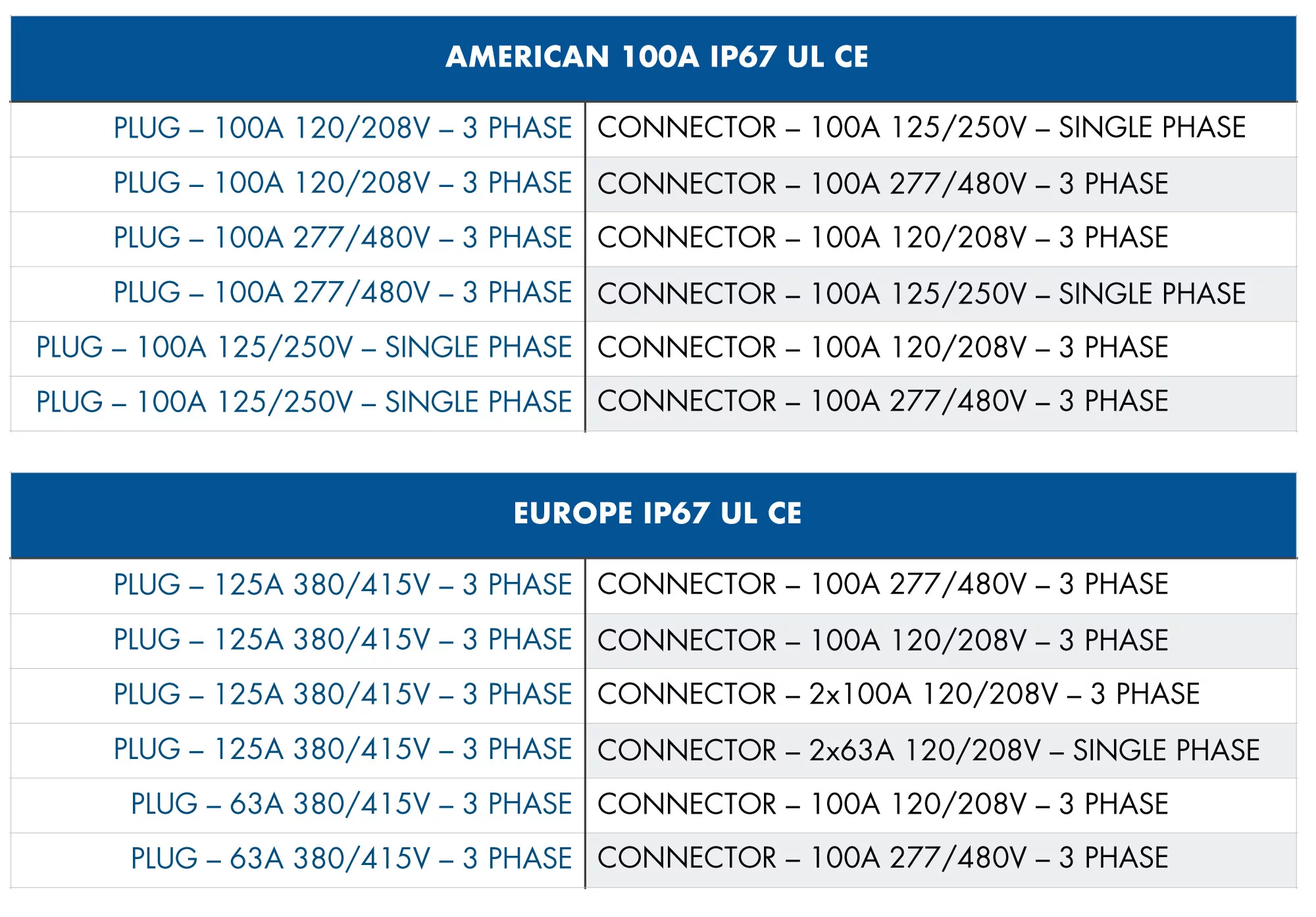

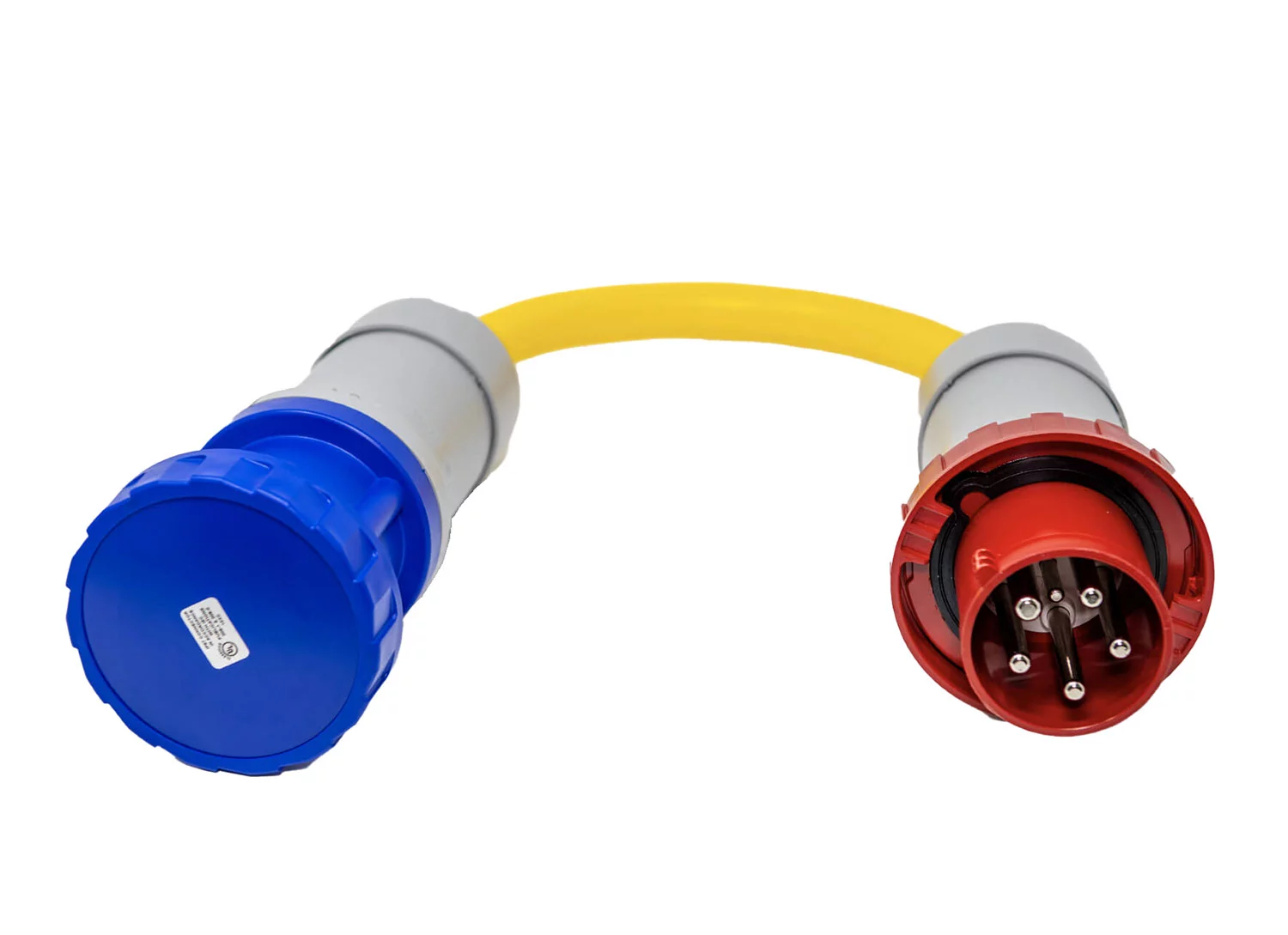

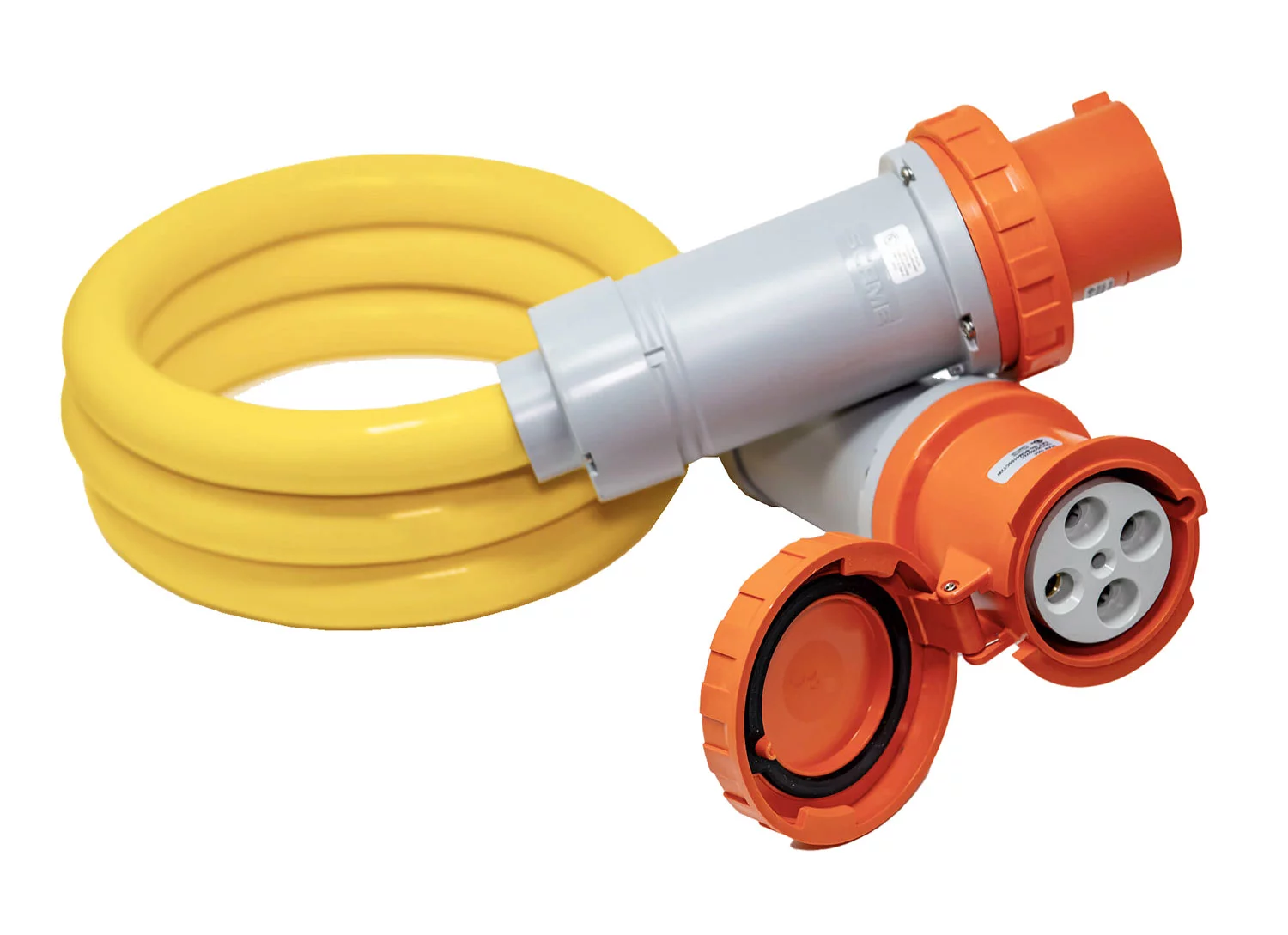

      ANG Pigtail Adapters™

      CUSTOM-MADE PIGTAIL ADAPTER AVAILABLE UPON REQUEST
      FROM 16A TO 125A SINGLE PHASE AND THREE-PHASE

      Marine pigtail adapters help connect your vessel’s electrical system to shore power sources with mismatched plug types, voltage, phase, or amperage.

      These adapters are designed to bridge the gap between different types of shore power connections—whether you need to connect a 100A 4-pin single-phase plug to a 100A 5-pin three-phase outlet, a 50A plug to a 100A outlet, a 480V three-phase connection to 208V three-phase, or a 125A European three-phase plug to a 100A U.S. three-phase receptacle.

      Any combination required for U.S. or European shore power can be custom-built.

      Pigtail dock power connectors ensure safe and reliable power transfer, enabling you to access electricity wherever you dock. Dockside pigtail adapters are essential for accommodating varying marina power configurations and preventing compatibility issues.

      If you’re looking for high-quality marine pigtail adapters, you’ll find everything you need at ANG.
      We offer a wide selection of dependable adapters, fast lead times, and competitive pricing.
      Reach out today with any questions or to request a quote.

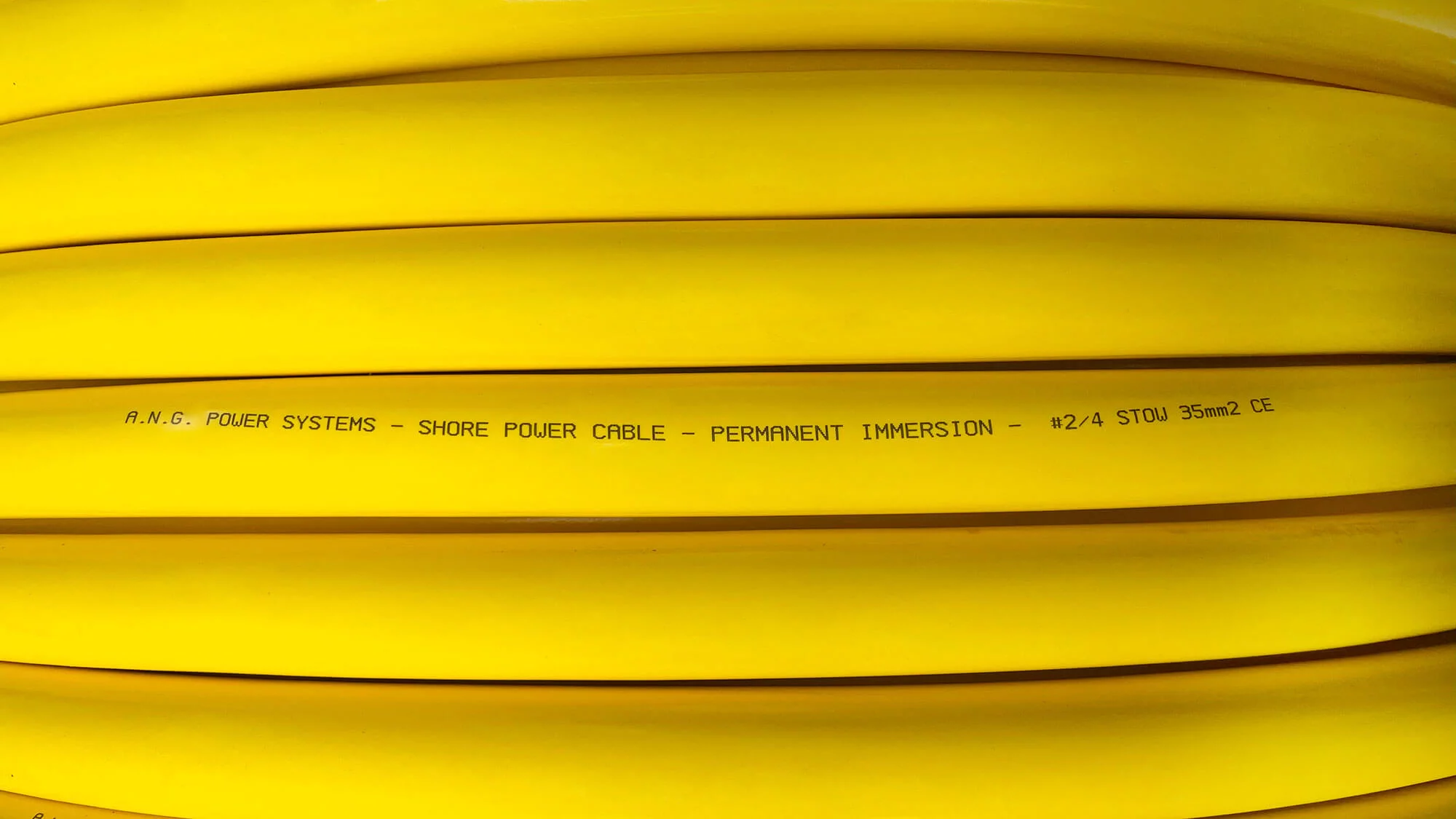

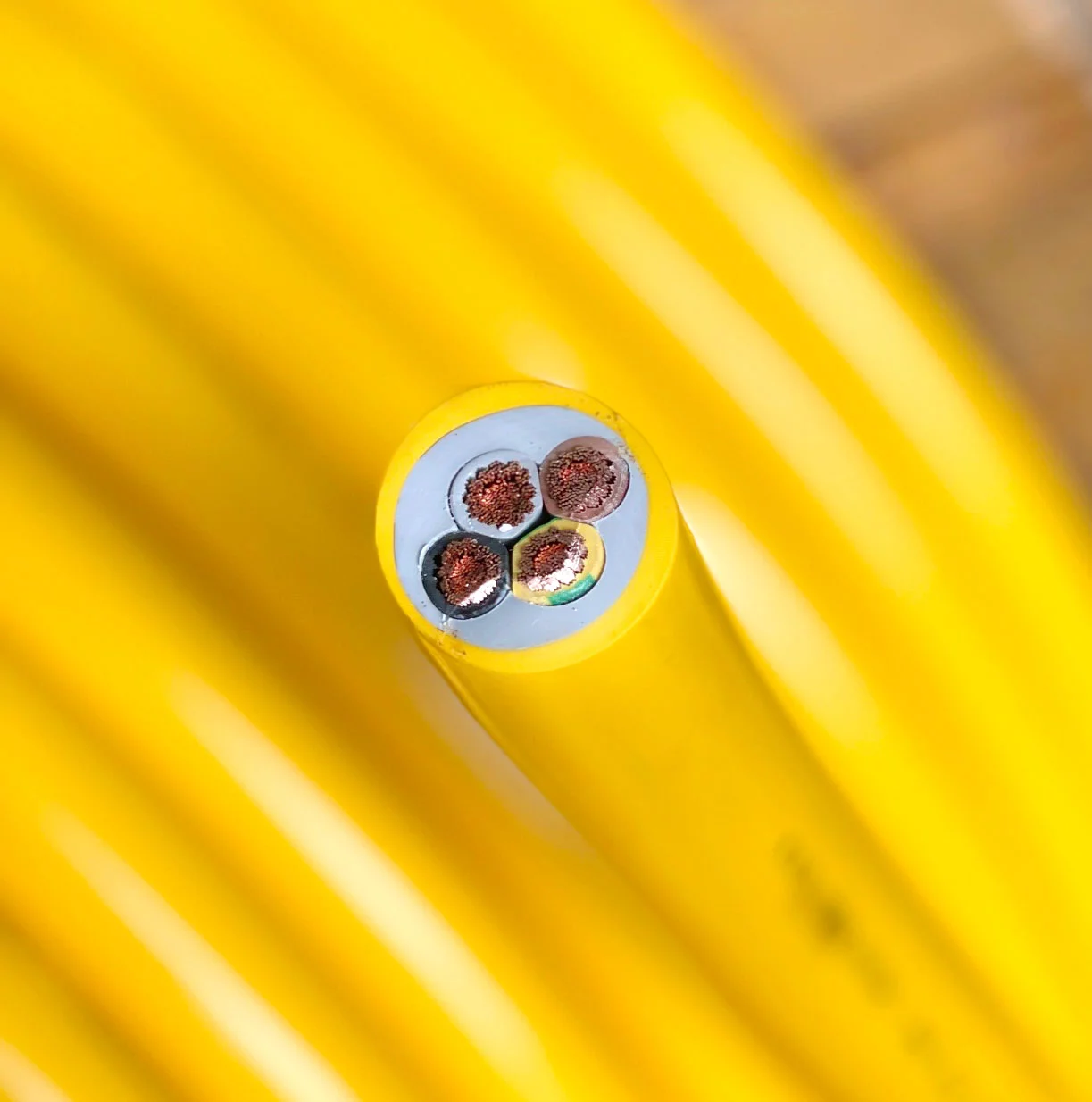

      ANG 100A Marine Power Cord™

      HIGH QUALITY 100AMP 3 AND 4 WIRES 2AWG SHORE CORDS

      A 100-amp marine power cord is a heavy-duty shore cord engineered to deliver reliable electricity from shore power to your vessel. Featuring durable, permanent immersion double isolation, 2 AWG (35 mm²) cable, and 3- or 4-wire conductors configurations, these cords are UL and CE certified to ensure safety and performance. They are specifically designed to handle the higher electrical demands of larger boats and yachts.

      CONVENIENCE & QUALITY

      PRODUCED FOLLOWING THE STRICTEST SPECIFICATIONS

      Our Power Cords are available in following versions:

      • Shore Cable 100Amp 2AWG (35mm2) 4 Wire, double isolation, permanent immersion, yellow.
      • Shore Cable 100Amp 2AWG (35mm2) 3 Wire, double isolation, permanent immersion, yellow.

      At ANG, we manufacture our marine shore power cords using robust, weather-resistant materials and subject them to rigorous quality standards.
      When you buy a 100-amp shore power cord from us, you’ll receive a high-quality product, fast lead times, competitive pricing, and complete peace of mind.

      Reach out today with any questions about our marine power cords.

      ANG Professional Technical Services

      ANG offers a comprehensive range of services to support the electrical systems of your vessel. Our team provides expert electrical technical support and electrical maintenance to ensure your yacht operates safely and reliably. We specialize in supplying integrated ship monitoring systems and custom dashboard panels, tailored to meet your specific needs. In addition, we offer a comprehensive selection of electrical spare parts for yachts built in Europe, enabling you to maintain and upgrade your systems with confidence. Whether you require diagnostics, component replacement, or fully integrated solutions, ANG is your trusted partner for marine electrical excellence.

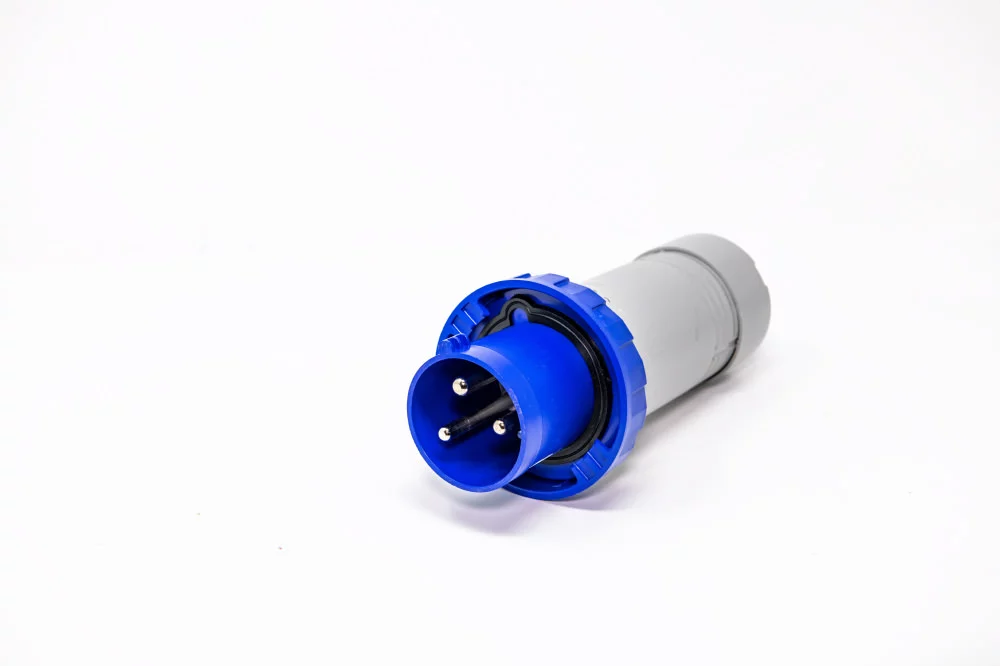

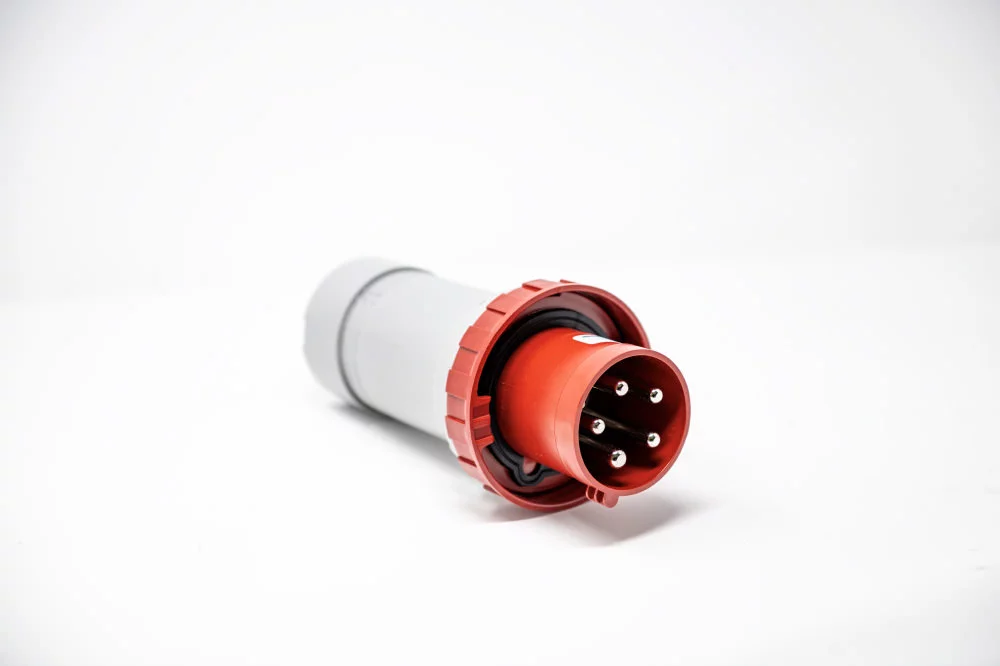

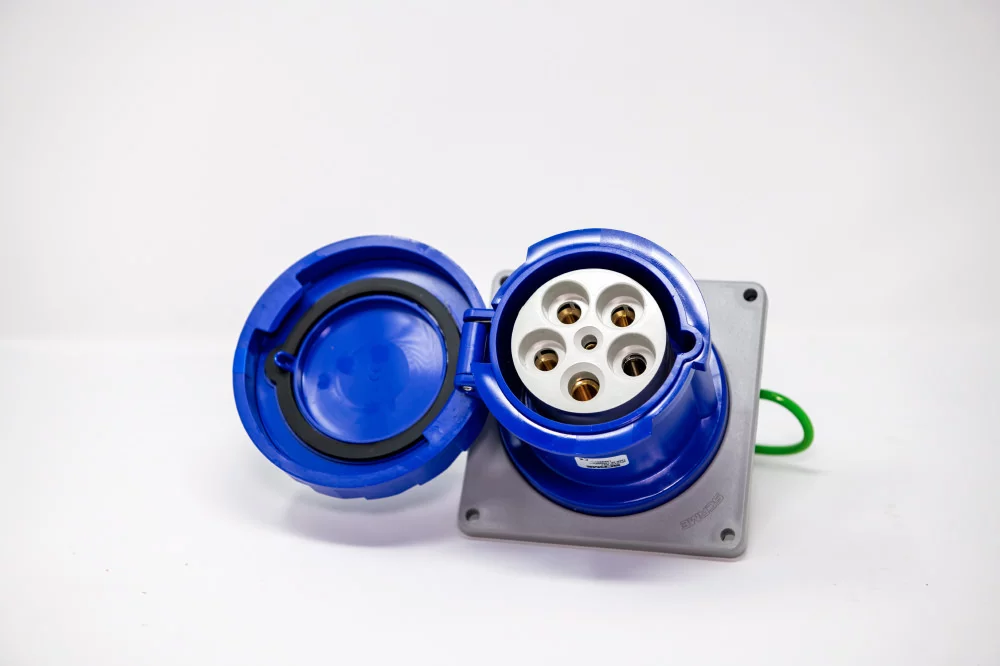

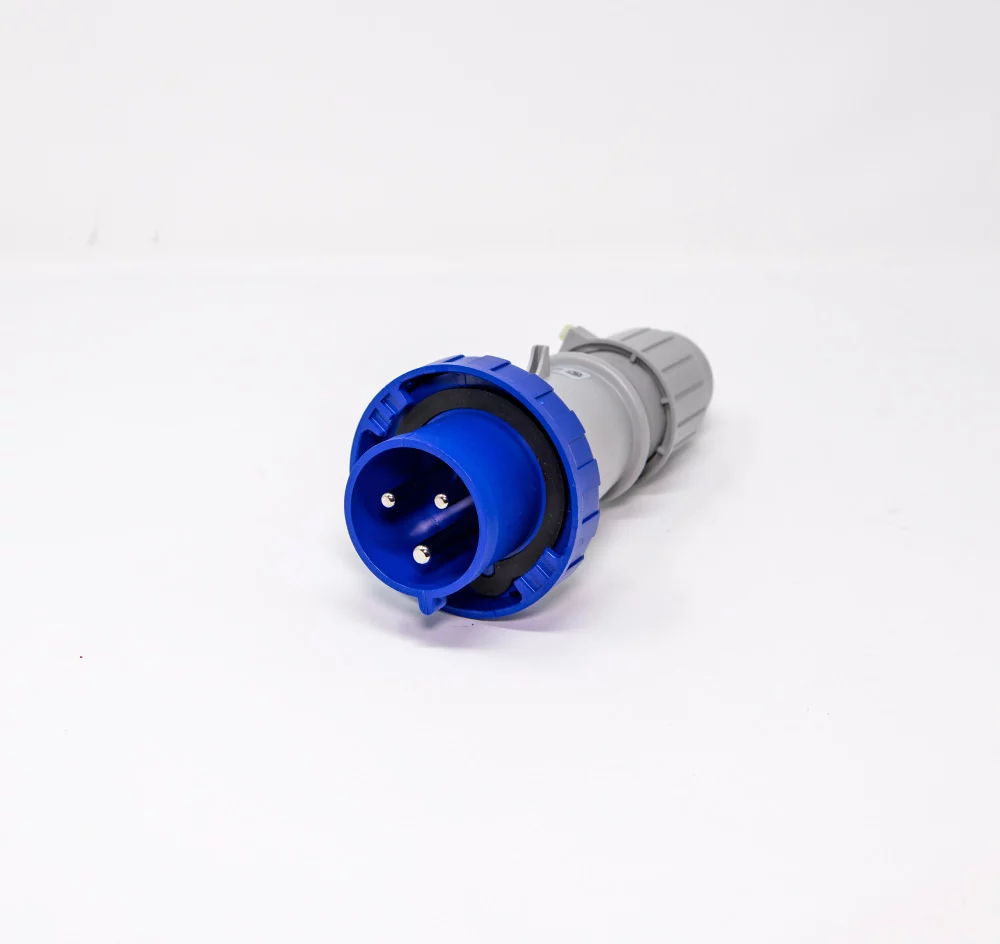

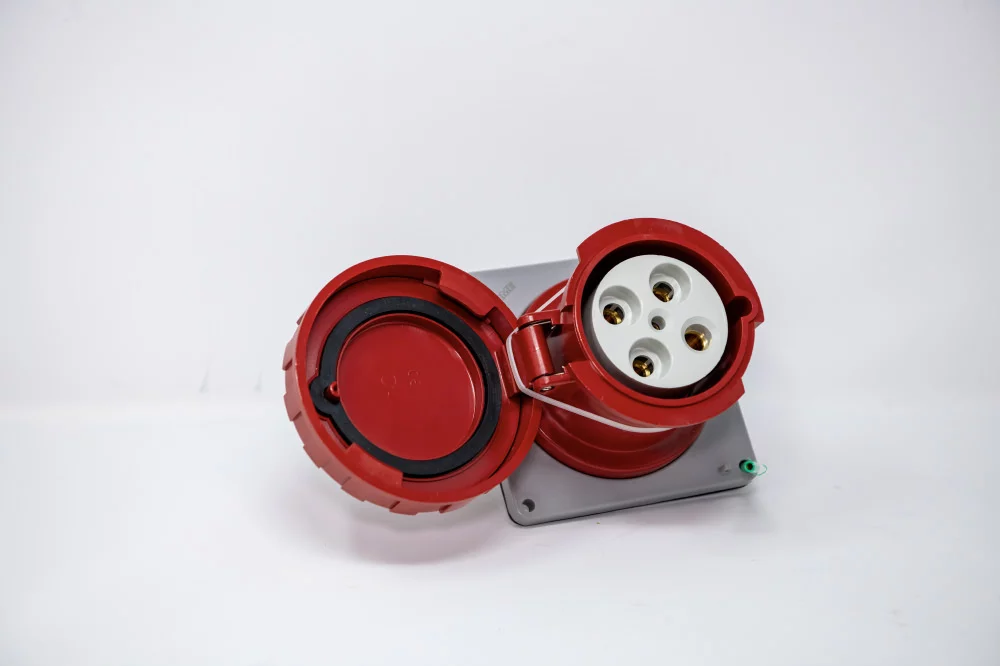

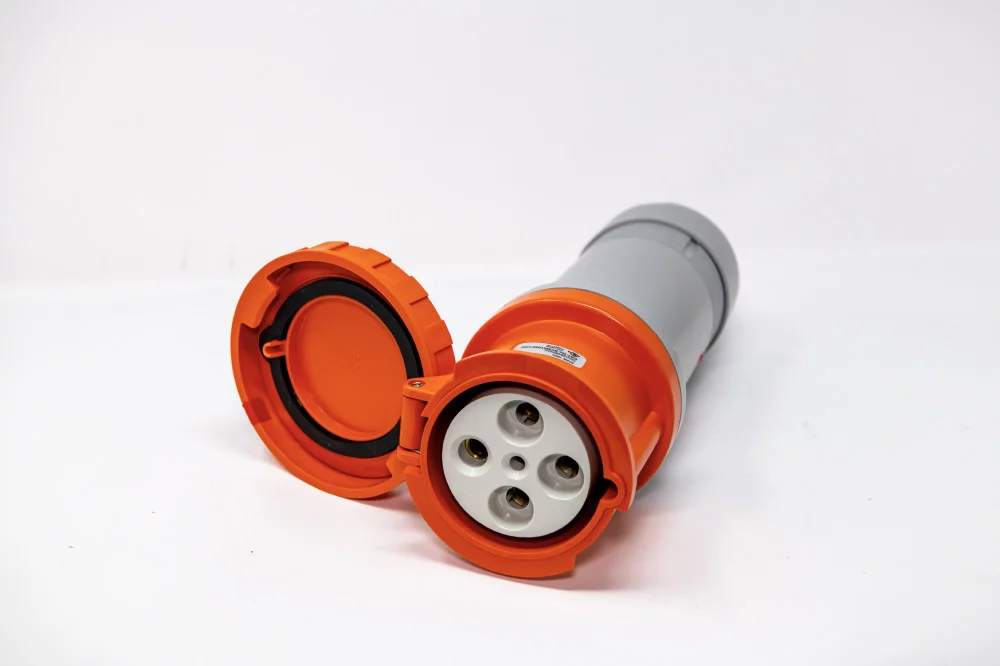

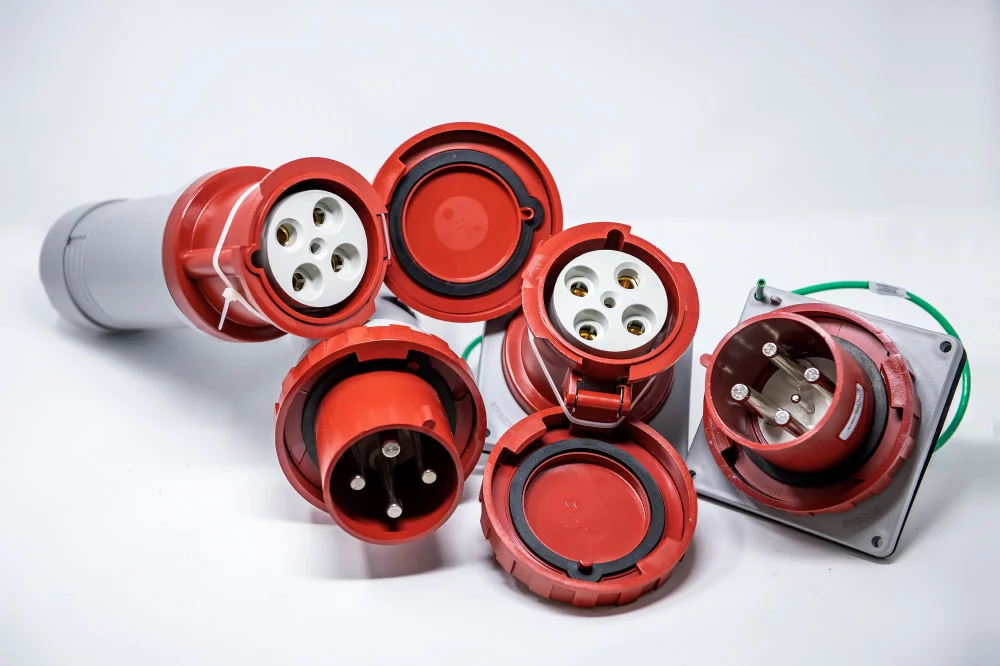

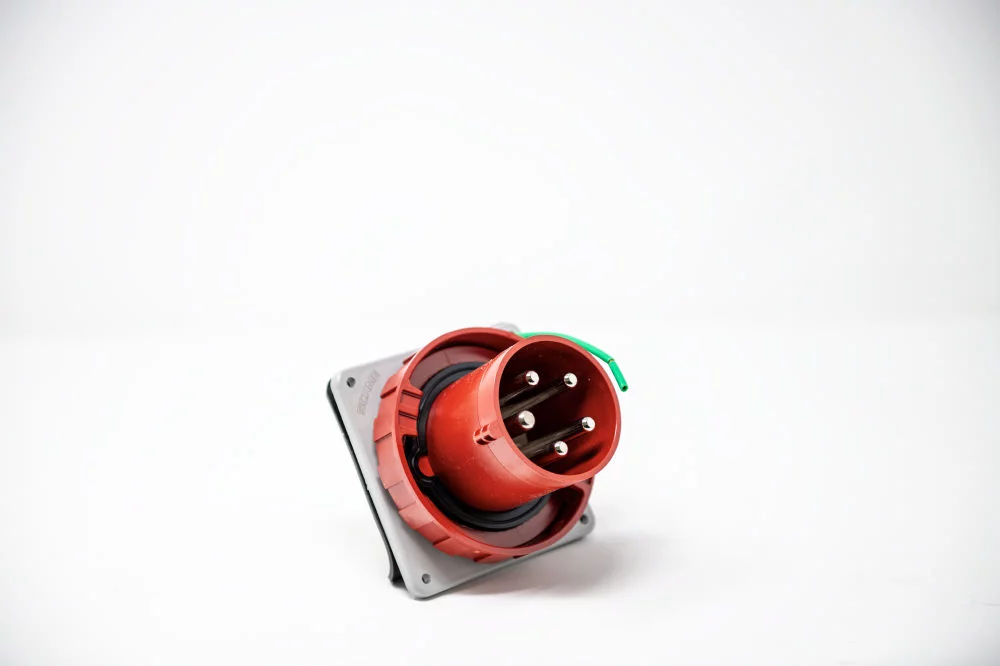

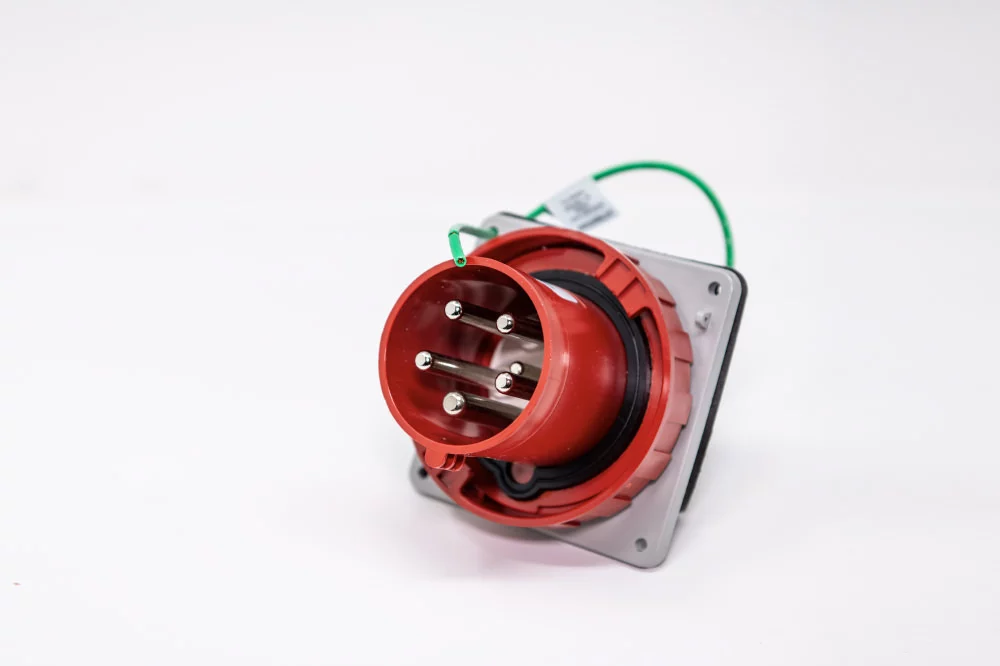

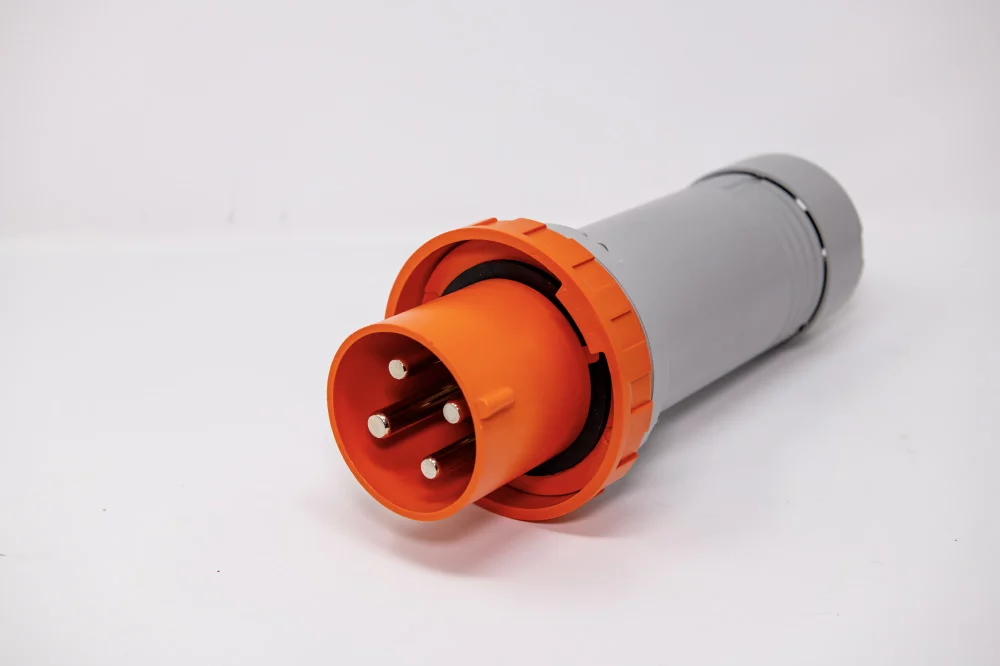

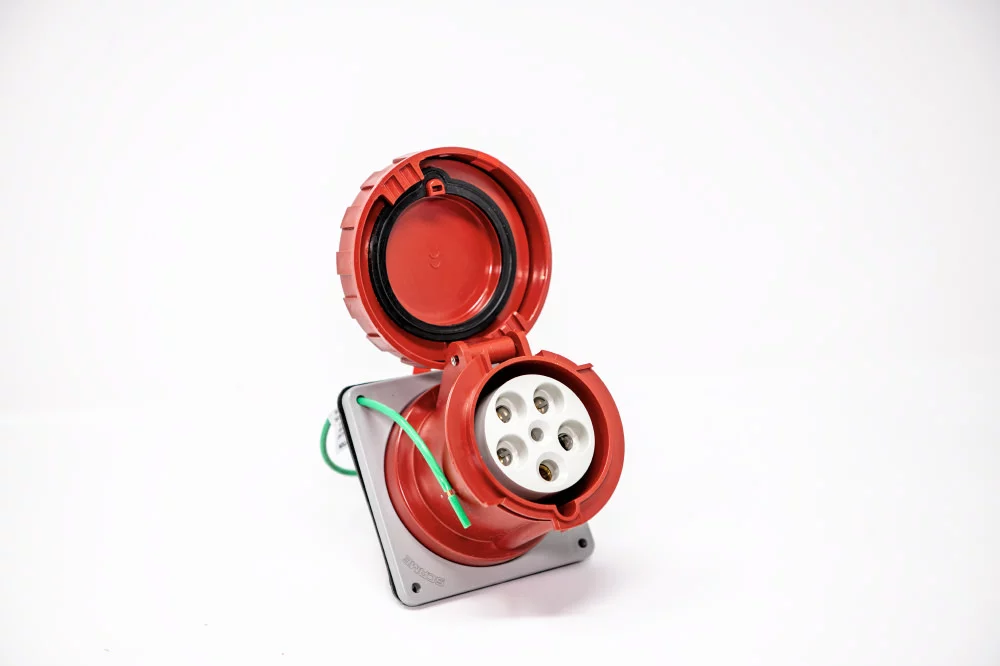

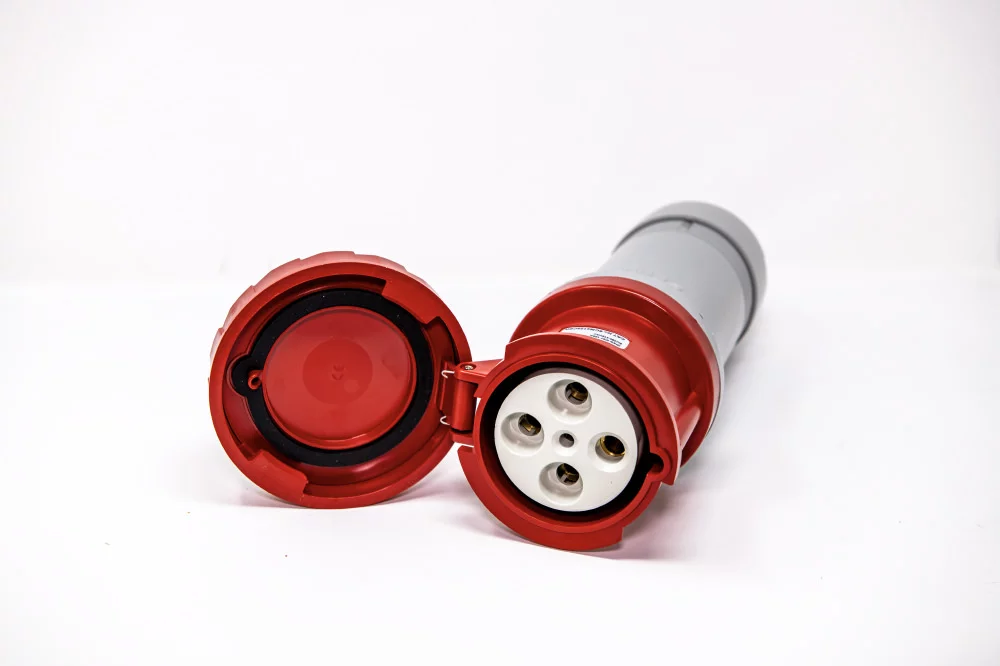

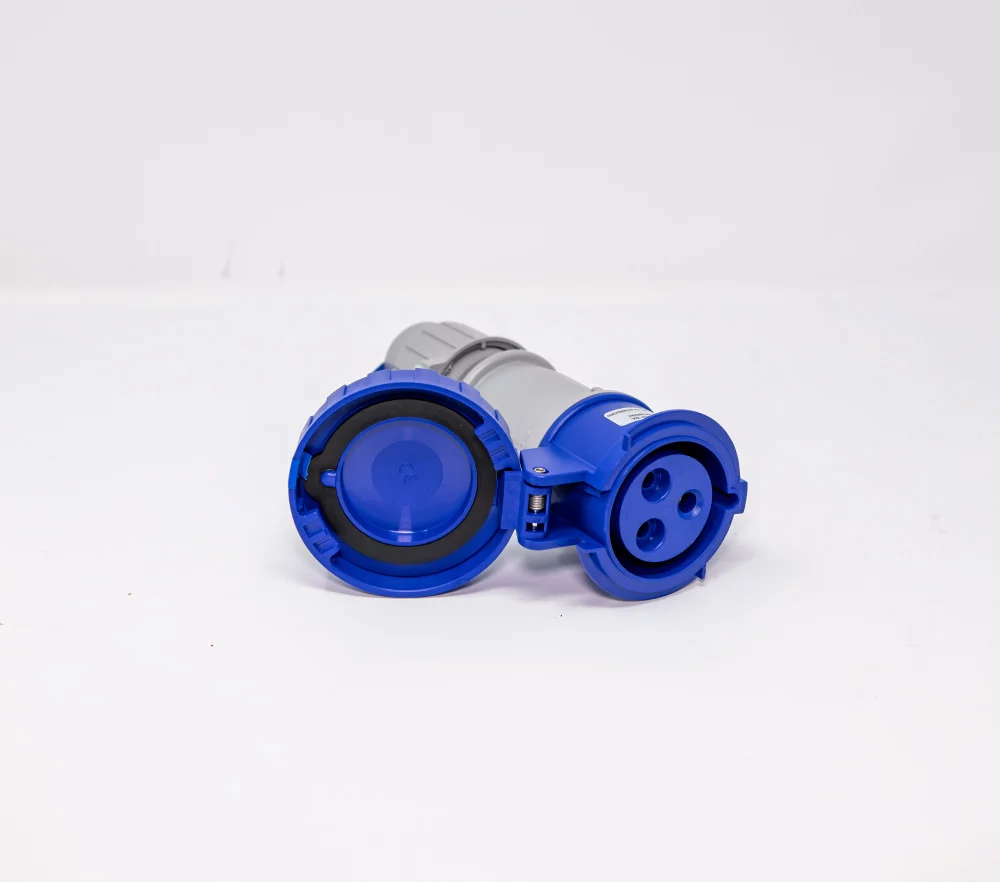

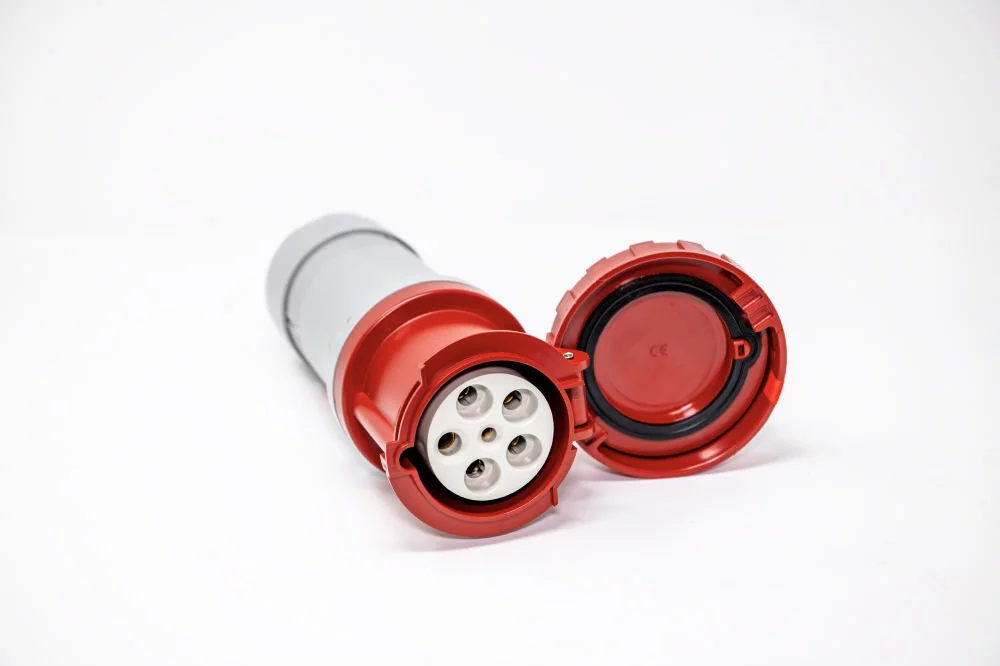

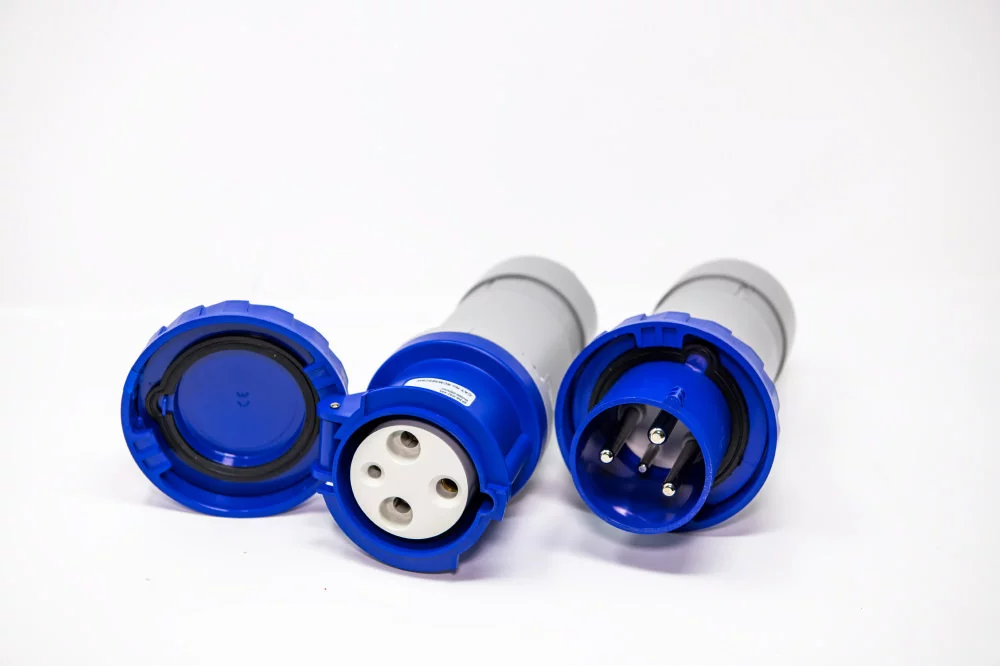

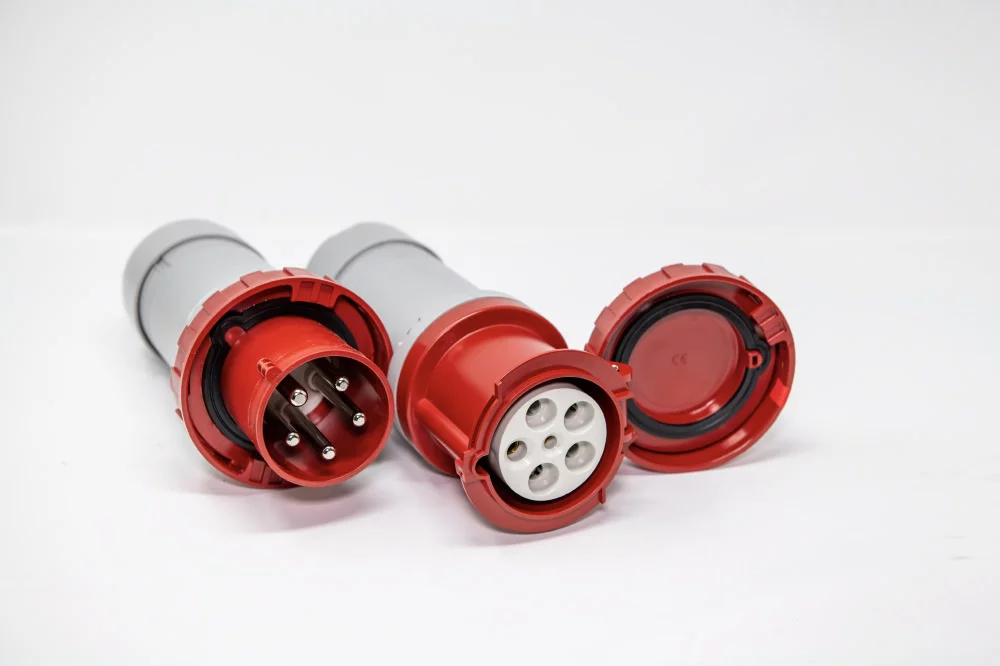

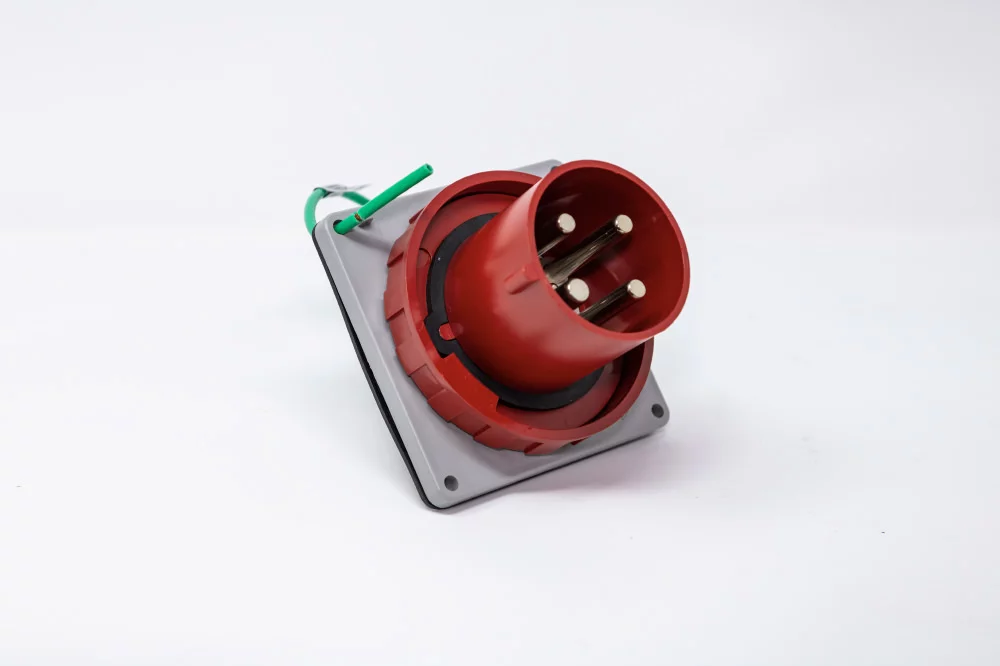

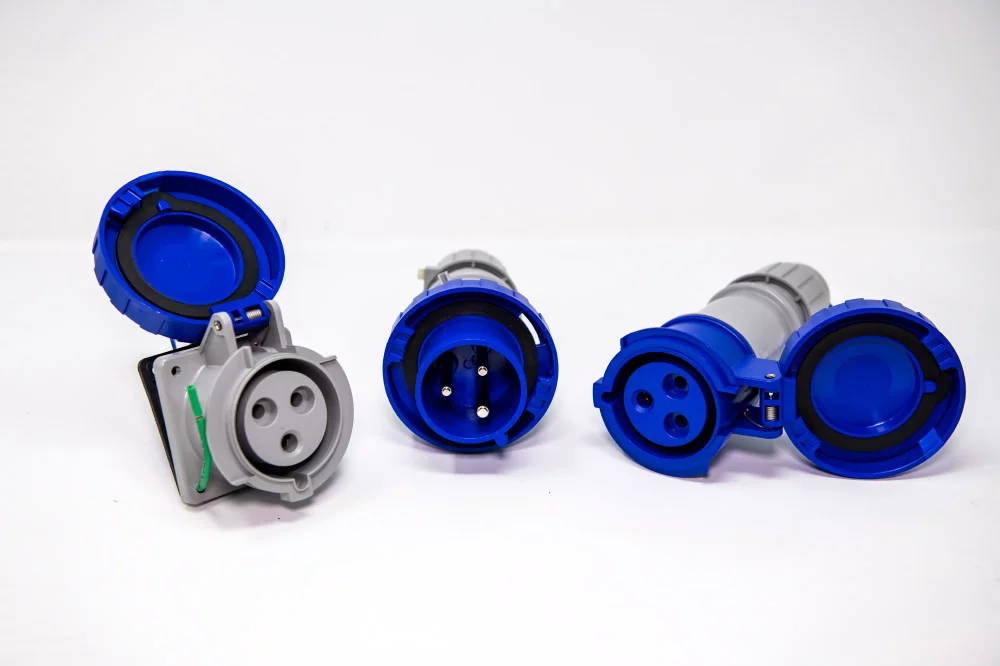

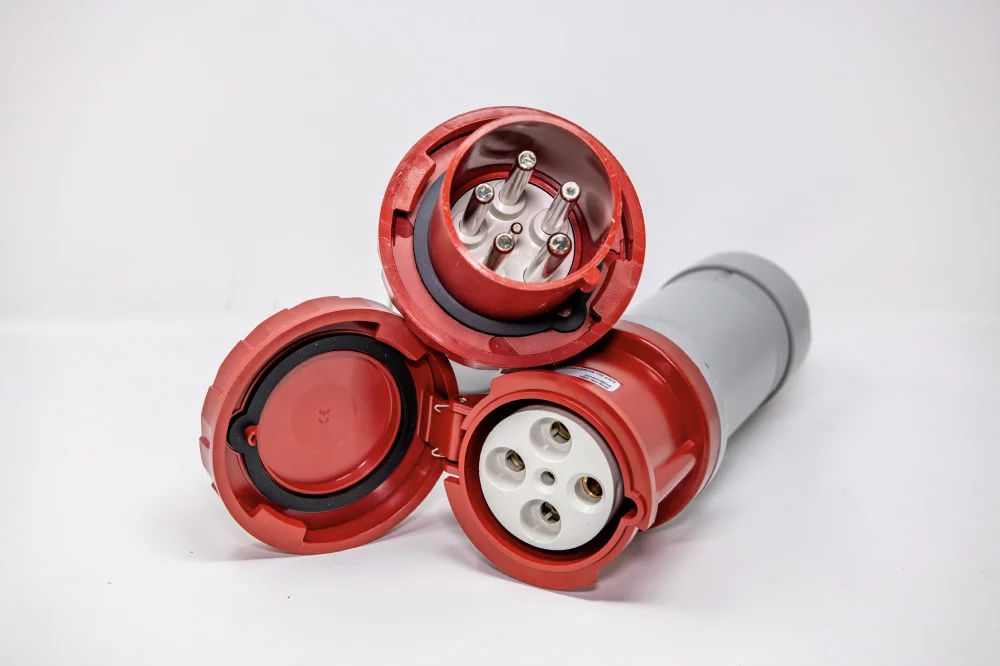

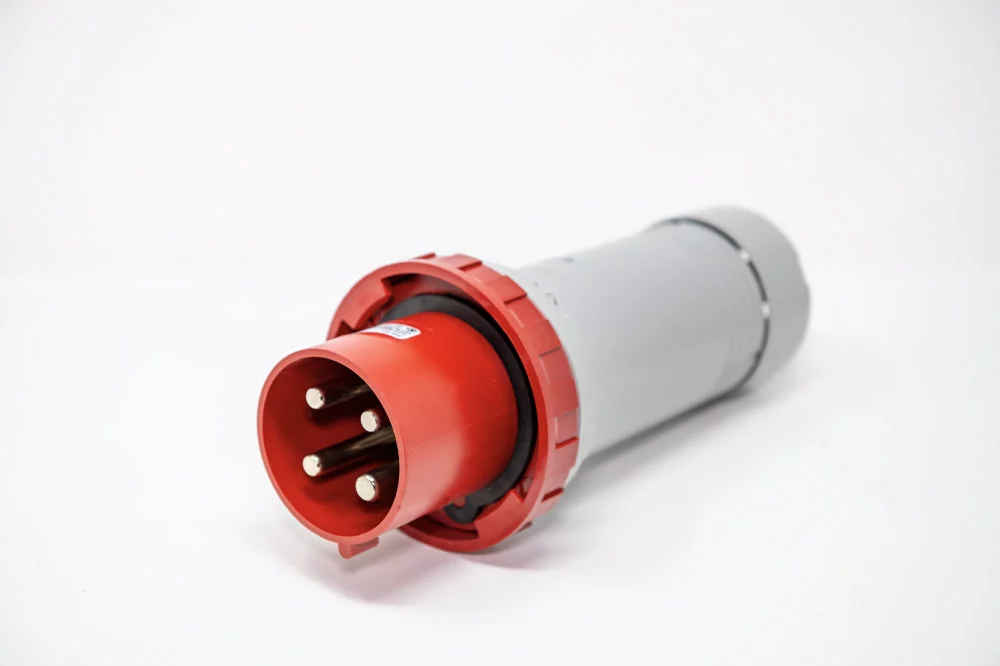

      ANG-Connectors & Plugs™

      Marine Plugs, Connectors, Inlets and Receptacles for USA and European Standards.

      ANG offers a wide range of high-quality plugs, connectors, inlets, and receptacles engineered for reliable power connections in demanding marine environments.

      Our marine plugs, connectors, receptacles, and inlets feature watertight and splashproof pins with IP67-rated sleeves, ensuring long-lasting performance in wet, corrosive conditions.

      Whether you need single-phase or three-phase configurations, ANG provides solutions ranging from 16A to 125A, available in both U.S. and European standards, so you can find the perfect fit for your power requirements.

      At ANG, you can trust in durable, safe products that meet stringent quality standards, all backed by expert support for your electrical connection needs. Browse our marine shore power plugs and connectors to find exactly what you need, and feel free to contact us with any questions.

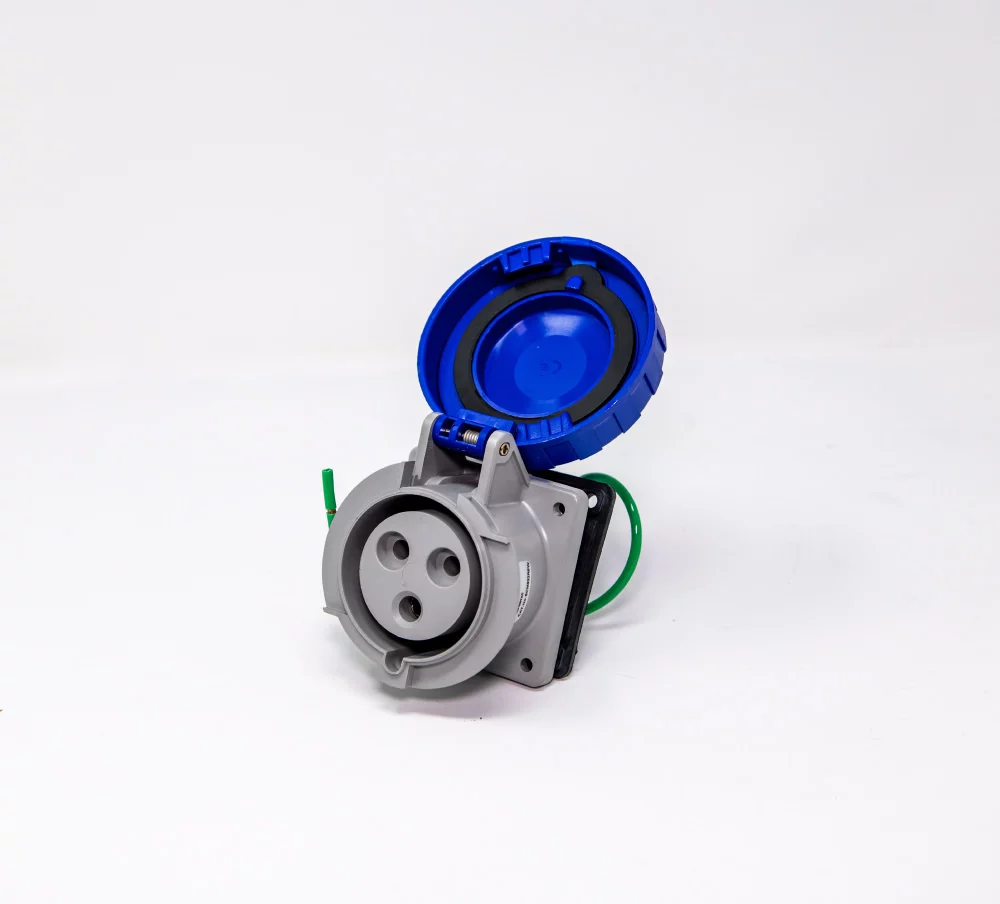

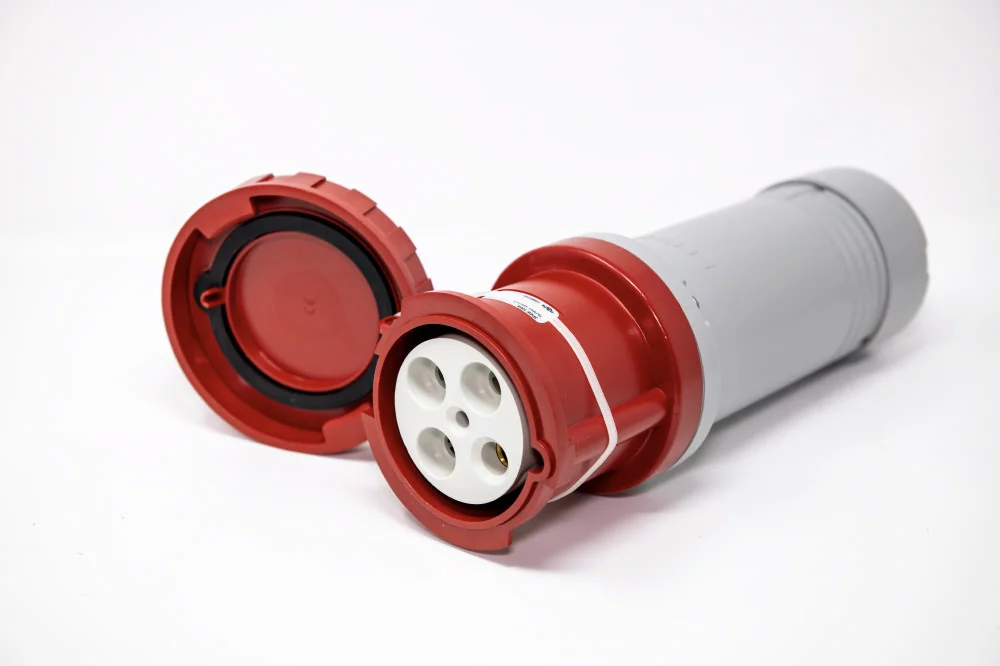

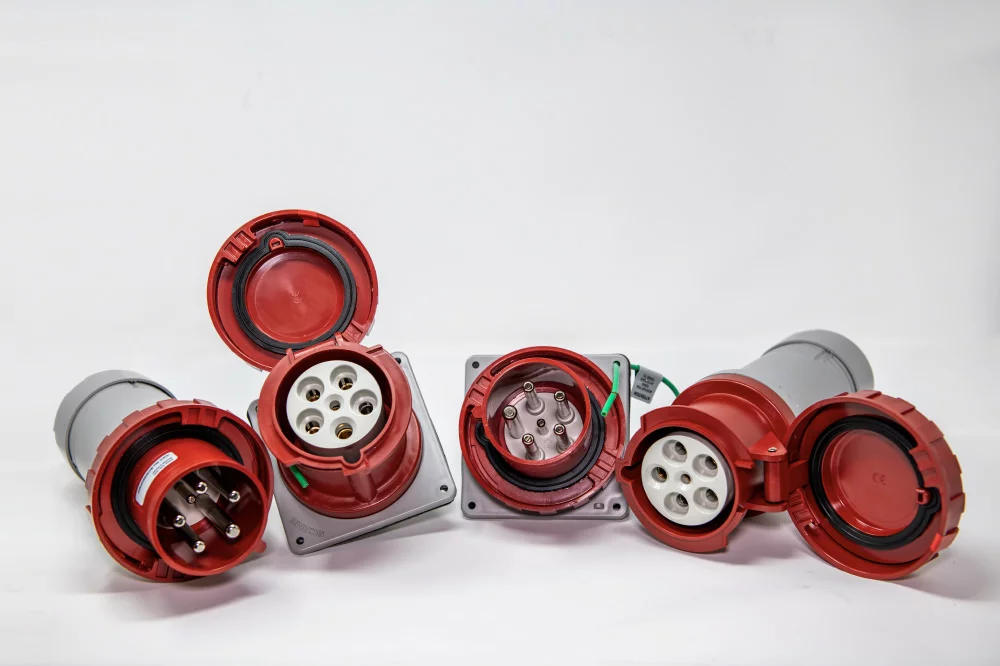

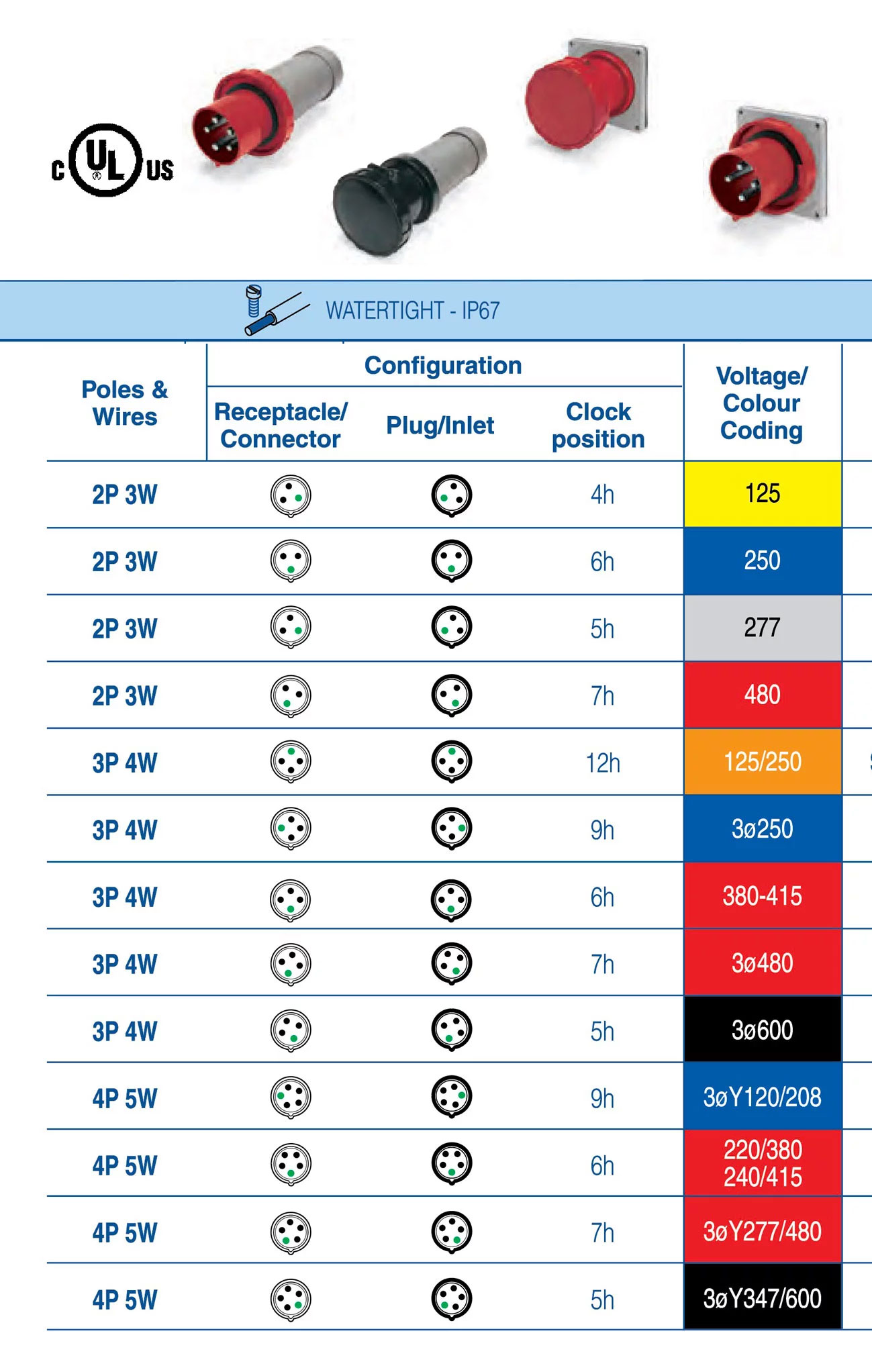

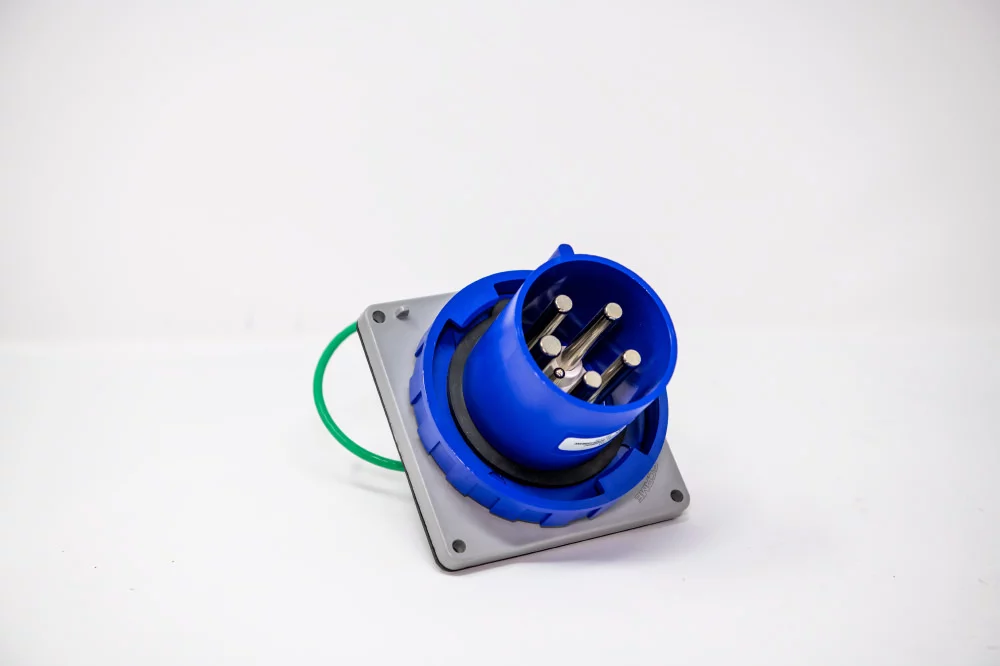

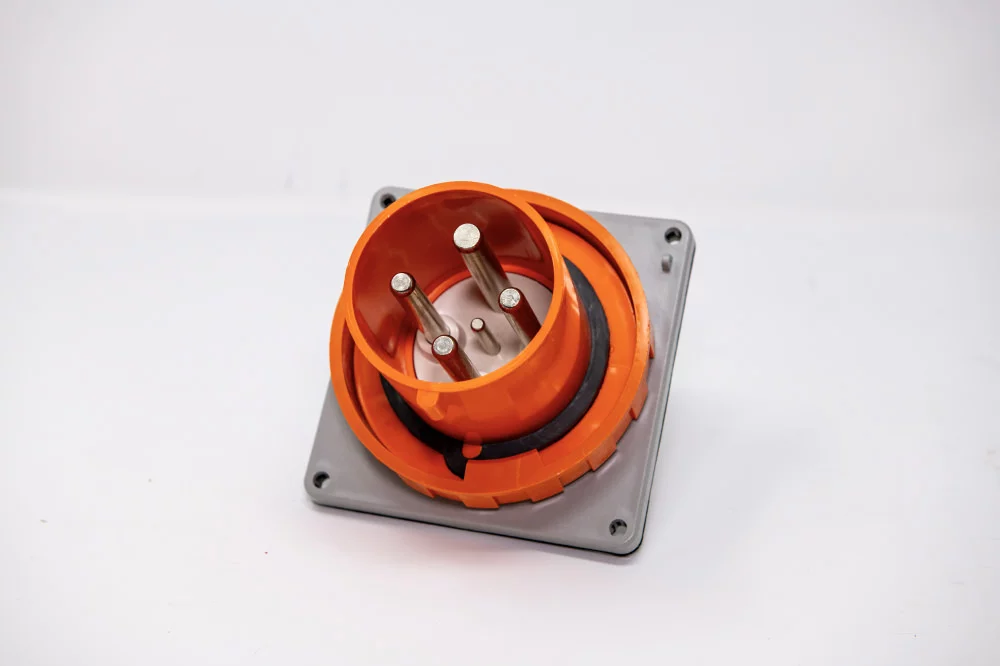

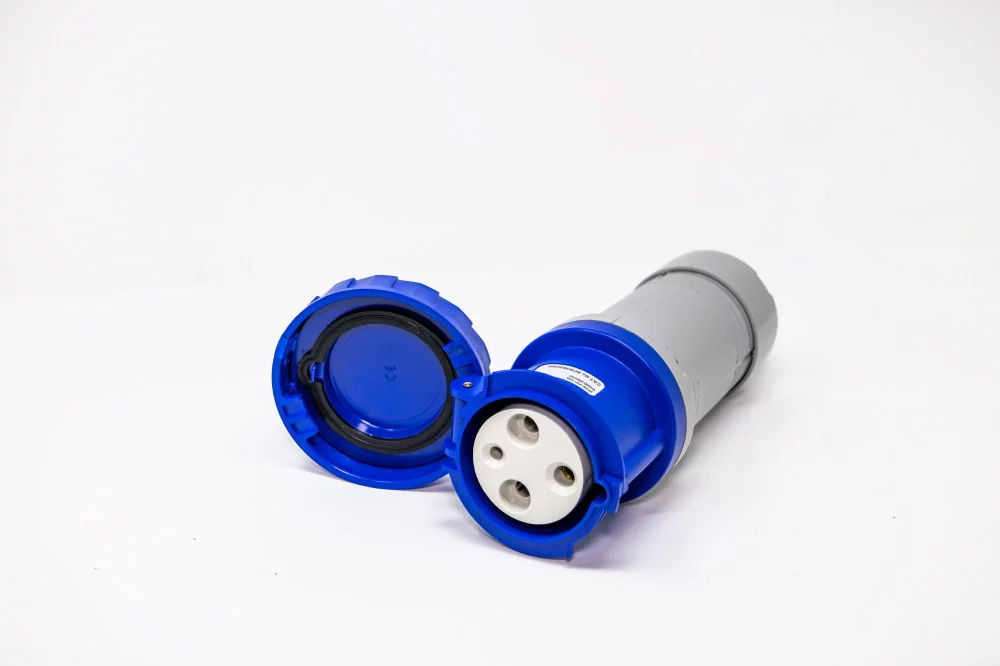

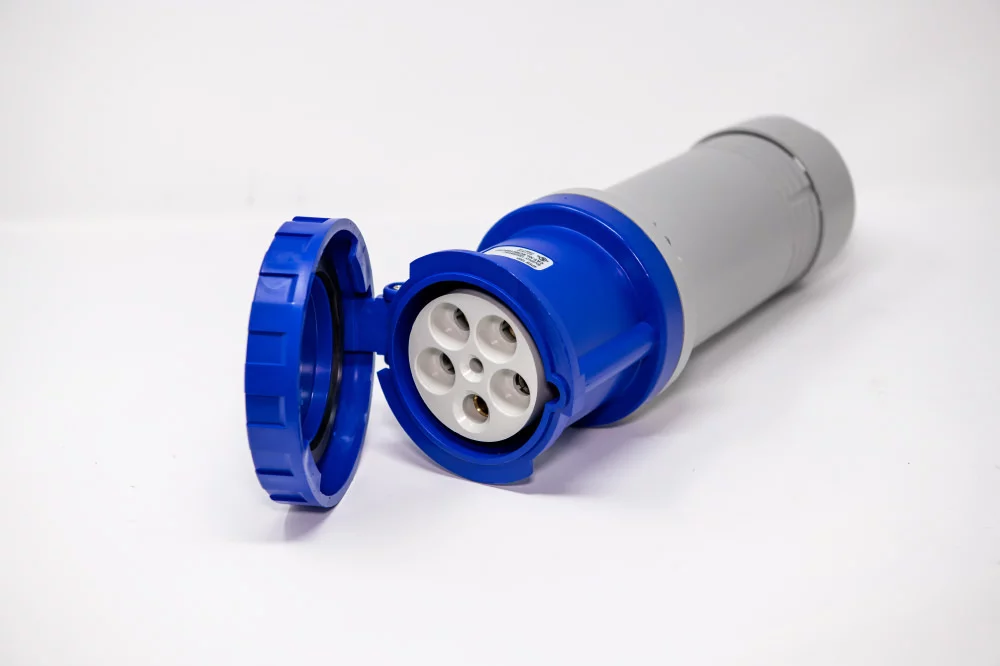

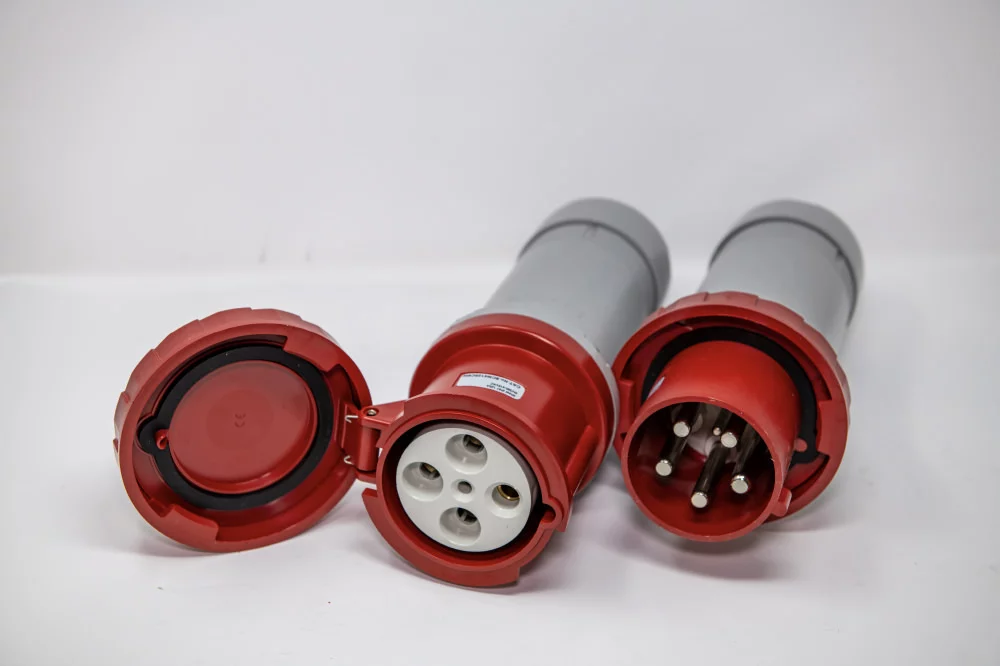

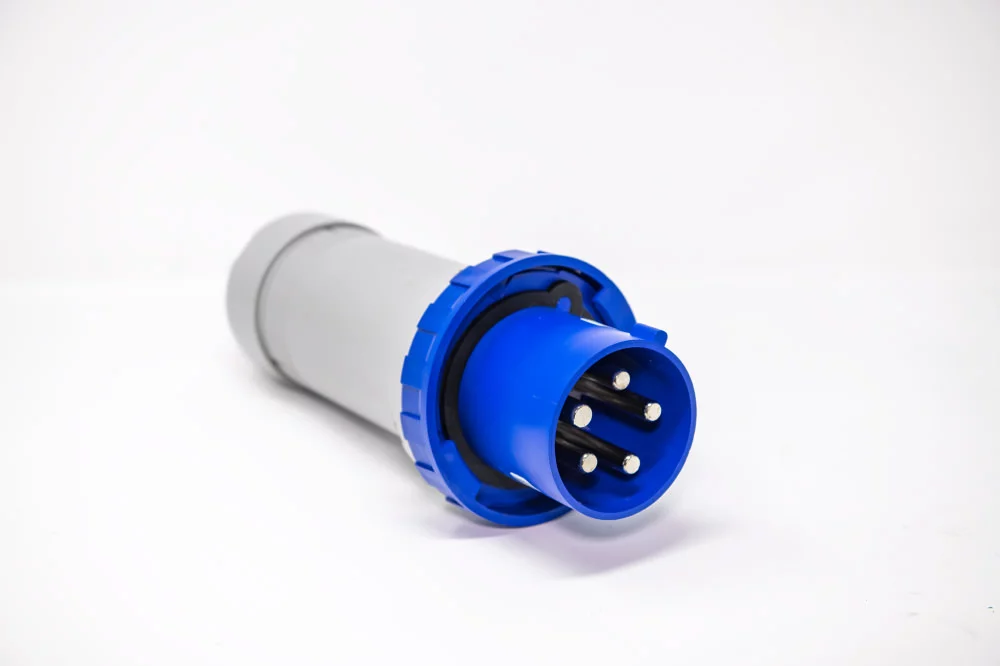

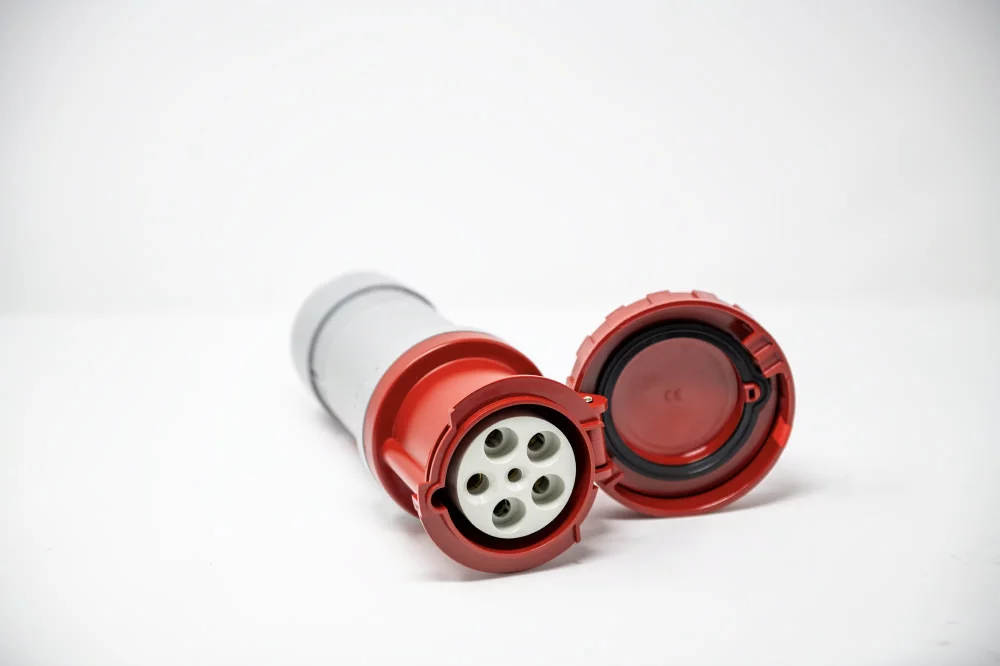

      100A PLUGS – CONNECTORS – INLETS – RECEPTACLES
      • Watertight and splashproof pins and IP67 sleeves
      • Available upon request from 16A to 125A, single-phase and three-phase

      For more information about our twin 50-amp or 100-amp shore power connection equipment, please contact us today.
      We guarantee outstanding service, fast lead times, competitive pricing, and—most importantly—high-quality, dependable products.

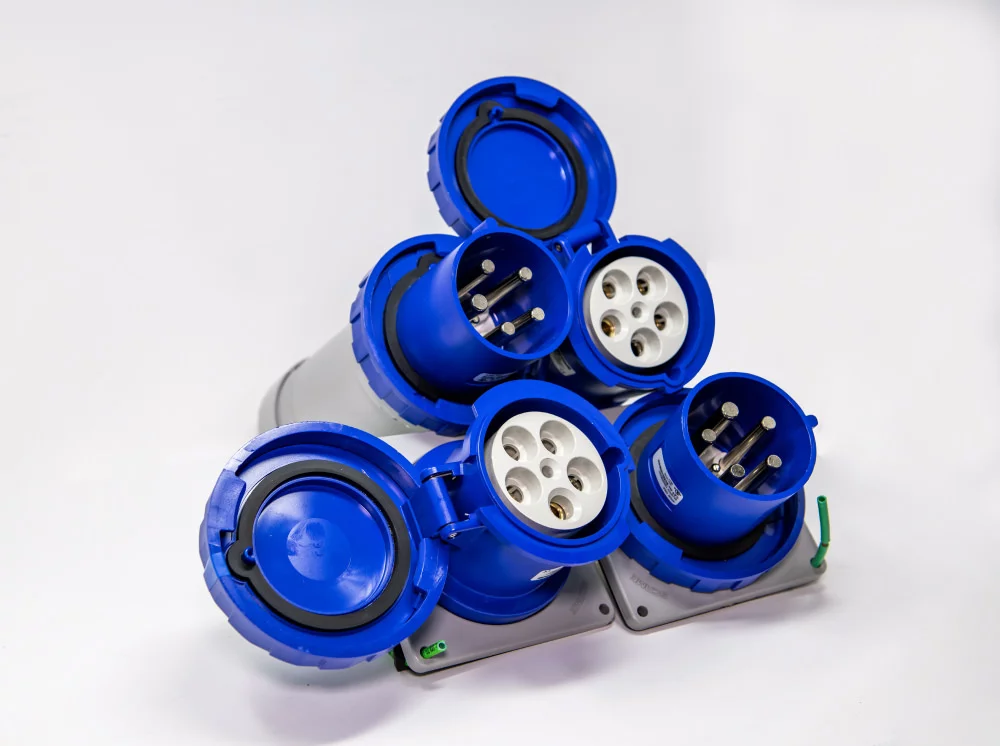

      ANG-Connectors & Plugs™ – Always in stock in Ft Lauderdale

      Best Practices for Marine Cables & Pigtail Adapters

      Storage, Operation, Maintenance, and Normal Use Guidelines

      Marine shore power cables and pigtail adapters are critical components of your vessel’s electrical system. Proper use and care extend their life, ensure safety, and maintain performance in harsh marine environments. The following best practices reflect current industry standards and are recommended for all ANG marine cables and adapters.


      1. Standard Operating Guidelines

      • Always inspect before use:
        Check for visible damage, corrosion, or signs of overheating at connectors and along the cable jacket.

      • Ensure tight and clean connections:
        Connectors should be fully seated, dry, and free of salt or grime before engaging shore power.

      • Use proper cord rating:
        Match the amperage and voltage ratings to the dockside pedestal and onboard inlet (e.g., a 100A 120/240V cord must match both the shore and boat receptacles).

      • Avoid adapters in line with active loads:
        Never plug or unplug pigtail adapters under load. Turn off breakers first to prevent arcing.

      • Protect connections:
        Use locking rings or watertight covers to keep plug junctions dry and secure.


      2. Maintenance & Inspection

      • Routine visual checks:
        Inspect cables monthly for:

        • Soft spots, cracks, or swelling

        • Discoloration at terminals

        • Pitting or corrosion on pins

      • Clean connectors regularly:
        Use dielectric grease on terminals and wipe connectors with a clean, dry cloth. Avoid harsh solvents.

      • Test continuity and insulation resistance:
        Use a multimeter or insulation tester annually, especially before long voyages.

      • Replace damaged components:
        If any part of the cable, plug, or pigtail shows heat damage, water ingress, or physical wear, replace it immediately.


      3. Storage Best Practices

      • Store dry and cool:
        Keep cables and adapters in a ventilated compartment away from moisture and direct sunlight.

      • Avoid tight coils:
        Loosely coil cables with a minimum diameter of 18–24 inches to prevent internal conductor fatigue.

      • Use cord bags or reels:
        Properly designed storage prevents kinking and abrasion. Avoid hanging cables from connectors.

      • Dry before storing:
        After use, rinse with fresh water (if exposed to salt) and allow to dry completely before storage.


      4. Usage Safety Standards ⚠️

      • Never modify cords or adapters:
        Altering plugs or splicing marine cables voids certifications and creates a safety hazard.

      • Respect IP ratings:
        Only use pigtail adapters rated for outdoor/marine use (ANG adapters are IP56+). Avoid indoor-rated components on the dock.

      • Avoid excessive strain:
        Use strain reliefs or cord supports to reduce mechanical load on plug connections.

      • Comply with ABYC and CE standards:
        All ANG cables and pigtail adapters are built to meet or exceed international safety certifications (UL, CE, IP67), and should be installed in accordance with ABYC E-11 guidelines.


      Summary of Best Practices

      TaskFrequencyPurpose
      Visual Inspection
      Before each use

      Detect damage, corrosion, wear

      Cleaning & greasing pins
      Monthly

      Prevent corrosion and ensure contact

      Electrical testing
      Annually
      Check continuity and insulation
      Dry & coil loosely
      After each use
      Prevent jacket fatigue and wear
      Storage in dry space
      Ongoing
      Extend service life and performance

      ANG marine cables and pigtail adapters are engineered for demanding marine conditions, but even the most rugged components require proper care. By following these industry-aligned best practices, you can ensure safe, long-lasting performance wherever you dock.

      For any questions about maintenance, replacement, or compatibility, don’t hesitate to get in touch with our support team —we’re here to help.
